MDW2

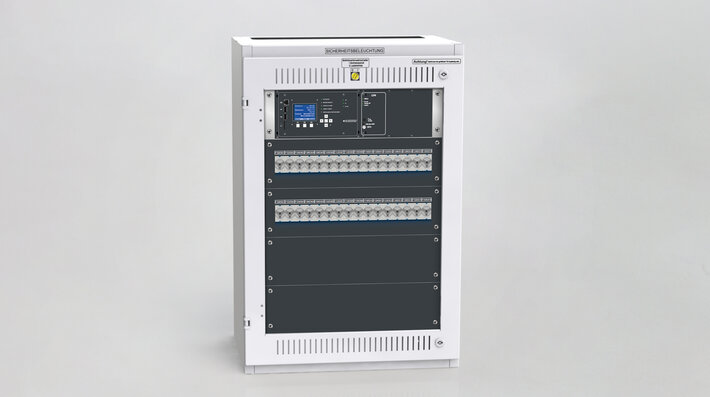

multiControl plus Central battery system Wall housing

The MDS system (wall-mounted housing without battery compartment) is a centralised power supply system for universal use in accordance with DIN EN 50171, which can be equipped with circuits of various power ranges.

Individual luminaire / circuit monitoring is not possible with this system. The circuits can also only be switched in combination with the respective switching device and/or restrictions apply to switching
. It goes without saying that the MDC can be networked and also monitored via web interface.

Up to 32 MDC substations can be connected to one MDC main station by means of an Ethernet network connection and several subdistributors. The system can be configured using the keyboard on the device itself or via a TCP/IP network connection to a remote PC.

Note: The specified load values are for reference only and are based on typical project configurations. Since our emergency lighting systems are often planned and customized for specific projects, the actual maximum load can vary significantly depending on the application, configuration, and system design. For an accurate assessment and load calculation, please contact our sales team.


Product data

Number of circuits
max. 64
Supply power 3 h
3800 W
Charger
Yes
Supply power 8 h
1240 W
Number of charging modules
2 pcs.
Input voltage AC
400 V
Modules SAM
Optional
Input frequency
50 / 60 Hz
IO modules
Yes
Output voltage AC
230 V
CCIF
Yes
Material
Steel sheet
Networkable
Yes
Housing color
Light grey
Outgoing SS/SD
Optional
Insulation class
IP20
Battery compartment
No
Depth
450 mm
Supply power 1 h
11760 W
Width
600 mm
Height
900 mm
Weight
115 kg
Weight incl. packaging
115 kg
Customs tariff number
85371098
Number of circuits
max. 64
Charger
Yes
Number of charging modules
2 pcs.
Modules SAM
Optional
IO modules
Yes
CCIF
Yes
Networkable
Yes
Outgoing SS/SD
Optional
Battery compartment
No
Supply power 1 h
11760 W
Supply power 3 h
3800 W
Supply power 8 h
1240 W
Input voltage AC
400 V
Input frequency
50 / 60 Hz
Output voltage AC
230 V
Material
Steel sheet
Housing color
Light grey
Insulation class
IP20
Depth
450 mm
Width
600 mm
Height
900 mm
Weight
115 kg
Weight incl. packaging
115 kg
Customs tariff number
85371098
