LSW019ML

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Robust emergency exit sign luminaire made from slim aluminium profile, for wall mounting.

The additional downward light emission helps to illuminate emergency and escape routes.

Control and monitoring via central power supply system. The requested pictogram (arrow to the right, left, up or down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
1
Mounting
Wall mounting
Supply
Centralised power supply systems
Recognition distance
56 m
Monitoring
Central power supply (ML)
Pictograph
acc. to Specification
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Aluminium
Operating mode
single luminaire switching
Housing color
Anodised aluminium
Input voltageAC
230 V
Protection type (IP)
IP40
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
216 V
Certification
WEEE, CE
Power max.
9,3 W
Power maintained
9,3 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-20 °C to 40 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C

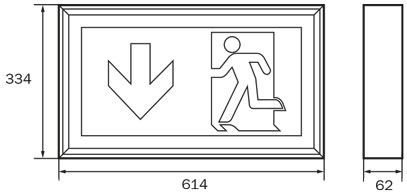

Depth
62 mm
Width
614 mm
Height
334 mm
Weight
2.85
Weight incl. packaging
2.85
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
600 lm
Luminous flux emergency
600 lm
Customs tariff number
94056180
EAN
4260123682774
Luminaire type
Exit sign
Mounting
Wall mounting
Recognition distance
56 m
Pictograph
acc. to Specification
Illuminant
LED
Housing material
Aluminium
Housing color
Anodised aluminium
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
9,3 W
Power maintained
9,3 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-20 °C to 40 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C
Depth
62 mm
Width
614 mm
Height
334 mm
Weight
2.85
Weight incl. packaging
2.85
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
600 lm
Luminous flux emergency
600 lm
Customs tariff number
94056180
EAN
4260123682774

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
