LFD12009-NW

General light, Safety luminaire Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

The robust LED wall- and ceiling-mounted luminaire made from fibreglass-reinforced polyester for damp room applications. The external support brackets simplify mounting.


Product data

Luminaire type
General light, Safety luminaire
Supply
Centralised power supply systems
Mounting
Universal
Monitoring
Without monitoring
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Polycarbonate
Operating mode
Standby circuit / permanent circuit
Housing color
Light grey
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 / 60 Hz
Impact resistance (IK)
8
Input voltage DC
216 V
Certification
CE, WEEE
Power max.
36 W
Insulation class
1
Power DS
36 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

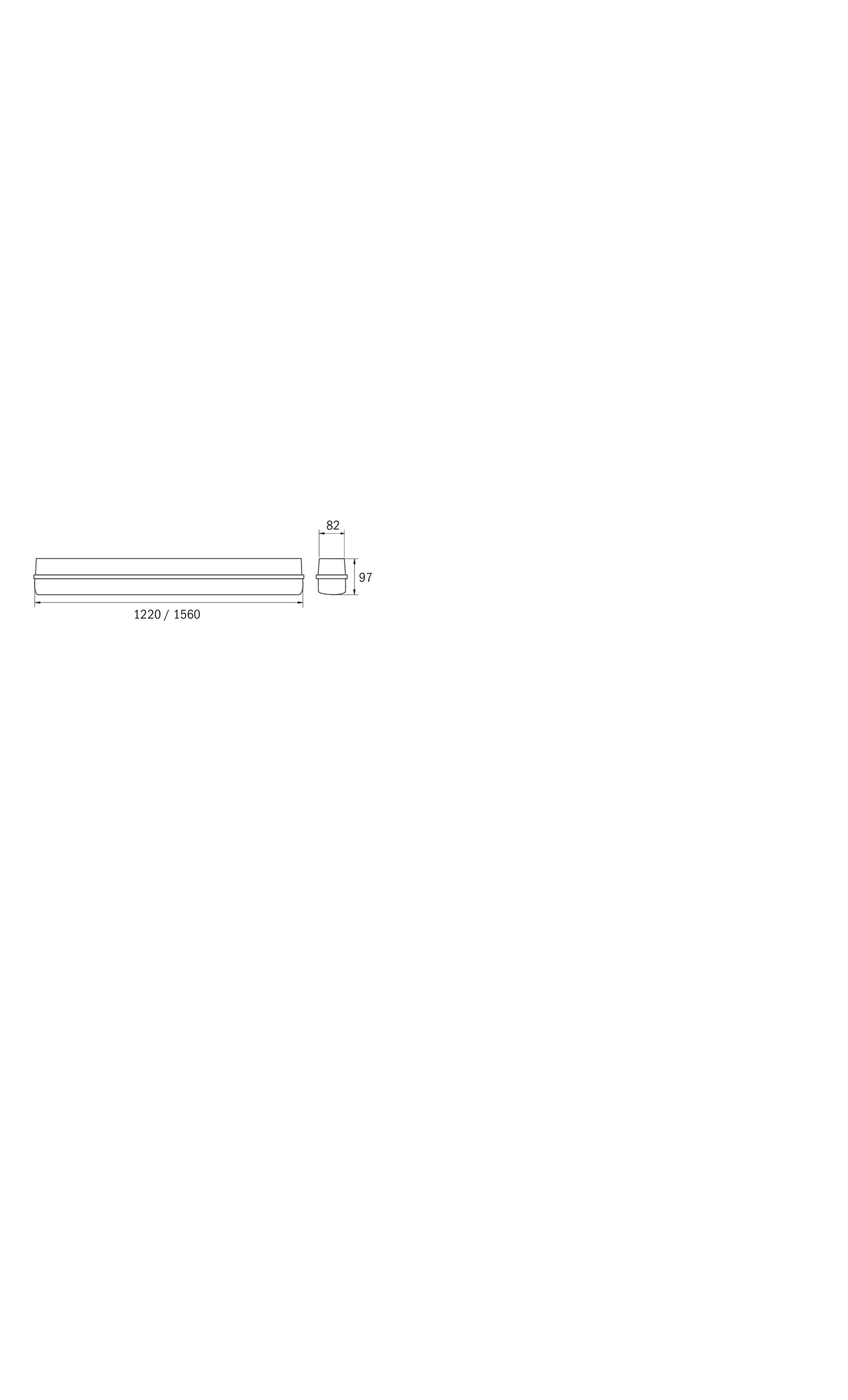

Depth
1220 mm
Width
82 mm
Height
97 mm
Weight
1.8
Weight incl. packaging
2.05
Connection cross-section
1.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
4500 lm
Luminous flux emergency
4500 lm
Customs tariff number
94056120
EAN
4260682142085
Luminaire type
General light, Safety luminaire
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Polycarbonate
Housing color
Light grey
Protection type (IP)
IP65
Impact resistance (IK)
8
Certification
CE, WEEE
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Without monitoring
Bridging time
CPS
Battery
/
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
36 W
Power DS
36 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
1220 mm
Width
82 mm
Height
97 mm
Weight
1.8
Weight incl. packaging
2.05
Connection cross-section
1.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
4500 lm
Luminous flux emergency
4500 lm
Customs tariff number
94056120
EAN
4260682142085

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
