KMB411WB

Emergency light Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Compact safety luminaire for universal mounting. The narrow rectangular plastic housing is discreetly reduced to the essentials. Illumination of the escape and emergency routes is assisted by the optics integrated in the surround.

Universal mounting includes fitting on the wall and ceiling as well as the option of fitting in the ceiling in conjunction with the mounting frame available.

Wireless control and monitoring for small installations of up to 50 luminaires with Wireless Basic. Universal mounting includes fitting on the wall and ceiling as well as the option of fitting in the ceiling in conjunction with the mounting frame available.


Product data

Luminaire type
Emergency light
Supply
Self-contained
Mounting
Universal
Monitoring
Wireless Basic (WB)
Pictograph
No
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 3,2 V/1,6 Ah
Housing material
Polycarbonate
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP54
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
- V
Certification
WEEE, CE, 5 years warranty
Power max.
5,3 W
Insulation class
2
Power maintained
3,9 W
Power non-maintained
1,5 W
Ambient temperature maintained mode
-10 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

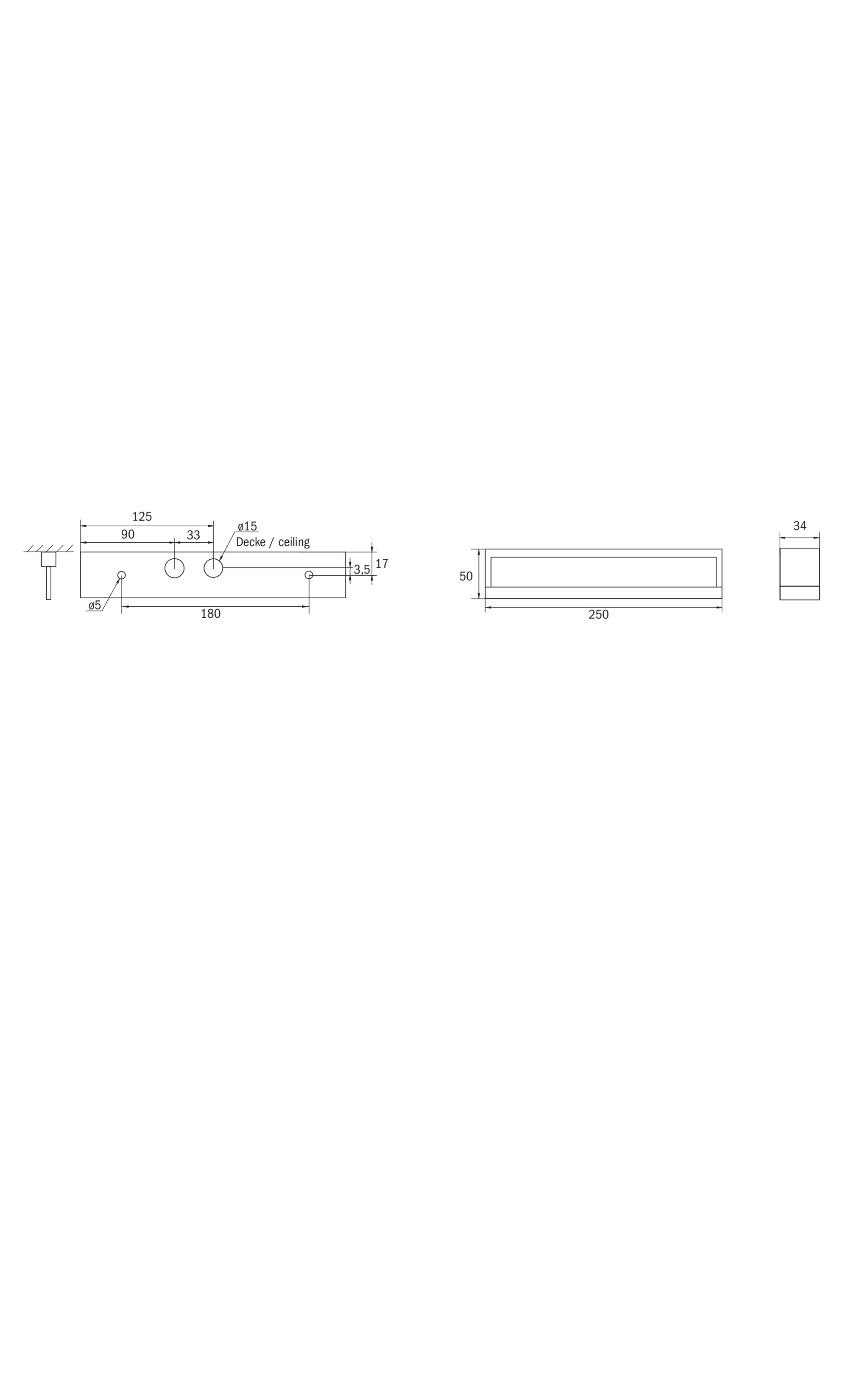

Depth
250 mm
Width
34 mm
Height
50 mm
Weight
0.55
Weight incl. packaging
0.62
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056180
EAN
4260766559945
Luminaire type
Emergency light
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP54
Impact resistance (IK)
≥ 3
Certification
WEEE, CE, 5 years warranty
Insulation class
2
Supply
Self-contained
Monitoring
Wireless Basic (WB)
Bridging time
1 h
Battery
LiFePO4 3,2 V/1,6 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
- V
Power max.
5,3 W
Power maintained
3,9 W
Power non-maintained
1,5 W
Ambient temperature maintained mode
-10 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
250 mm
Width
34 mm
Height
50 mm
Weight
0.55
Weight incl. packaging
0.62
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056180
EAN
4260766559945

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
