KMB011WL

Safety luminaire Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Compact safety luminaire for universal mounting. The narrow rectangular plastic housing is discreetly reduced to the essentials. Illumination of the escape and emergency routes is assisted by the optics integrated in the surround.

Universal mounting includes fitting on the wall and ceiling as well as the option of fitting in the ceiling in conjunction with the mounting frame available.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional. Universal mounting includes fitting on the wall and ceiling as well as the option of fitting in the ceiling in conjunction with the mounting frame available.


Product data

Luminaire type
Safety luminaire
Supply
Single Battery
Mounting
Universal
Monitoring
Wireless Professional (WL)
Pictograph
No
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 3,2 V/3,3 Ah
Housing material
Plastic
Operating mode
Standby circuit / permanent circuit
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP54
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
- V
Certification
WEEE, CE
Power max.
5,3 W
Insulation class
2
Power DS
3,9 W
Power BS
1,5 W
Ambient temperature DS
-10 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

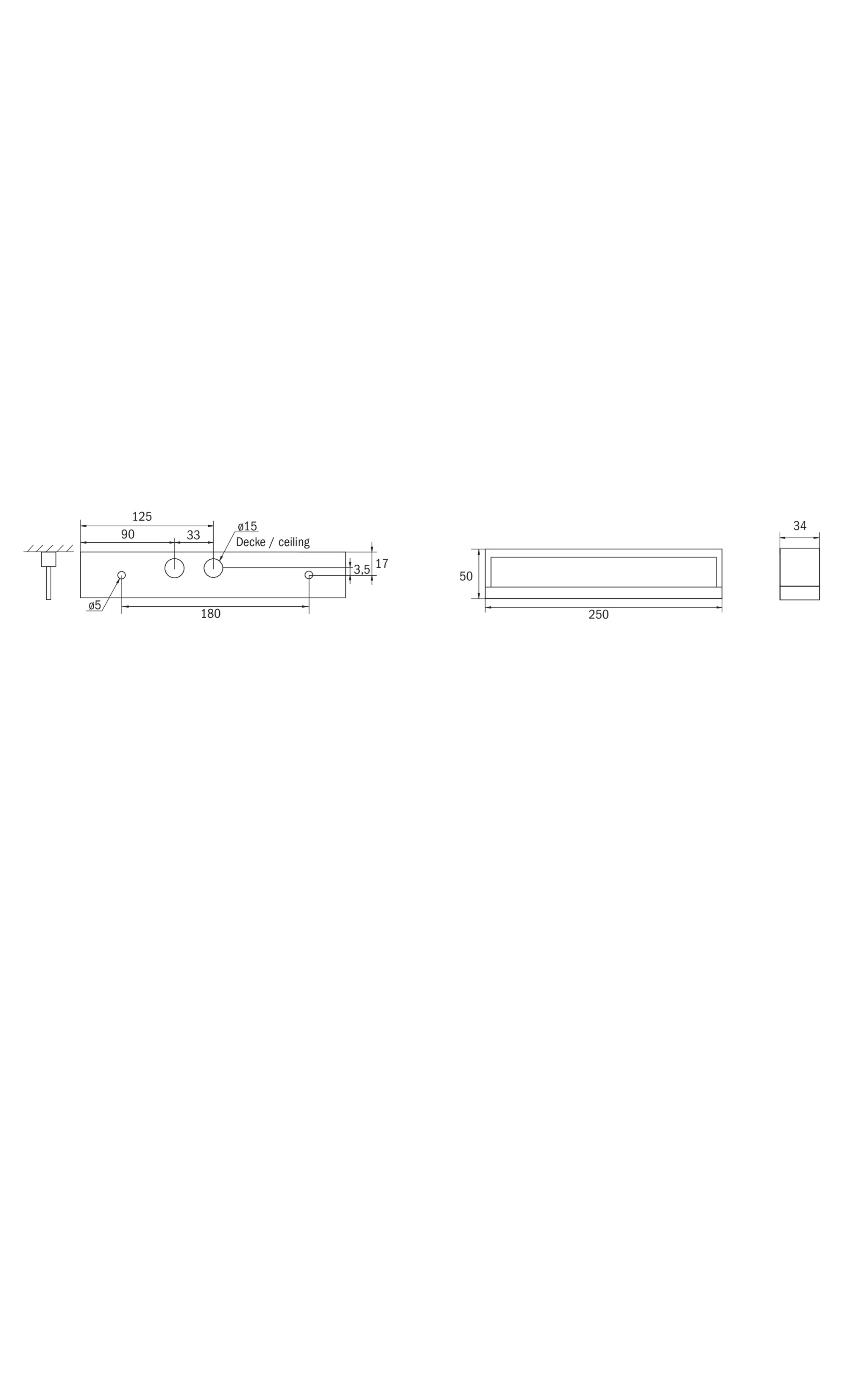

Depth
250 mm
Width
34 mm
Height
50 mm
Weight
0.58
Weight incl. packaging
0.65
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056120
EAN
4260349824705
Luminaire type
Safety luminaire
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP54
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
2
Supply
Single Battery
Monitoring
Wireless Professional (WL)
Bridging time
1 h
Battery
LiFePO4 3,2 V/3,3 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
- V
Power max.
5,3 W
Power DS
3,9 W
Power BS
1,5 W
Ambient temperature DS
-10 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
250 mm
Width
34 mm
Height
50 mm
Weight
0.58
Weight incl. packaging
0.65
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056120
EAN
4260349824705

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic


Accessories

  • KME-EB
    Mounting frame
    PRODUCT
  • BALL1
    Wire mesh guard
    PRODUCT
  • KMBE
    Concrete-mounted box
    PRODUCT
  • BALLPLX-KMB
    Wire mesh surround
    PRODUCT
  • LFP3233.01
    LiFePO4 Battery
    PRODUCT
