KLU013WL

Exit sign Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Box-shaped plastic emergency exit sign luminaire for universal mounting. Suited to inscription on one or two sides.

The additional downward light emission helps to illuminate emergency and escape routes.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Universal
Supply
Self-contained
Recognition distance
34 m
Monitoring
Wireless Professional (WL)
Pictograph
Set
Bridging time
3 h
Illuminant
LED
Battery
NIMH 12 V/0,8 Ah
Housing material
Polycarbonate
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP43
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
- V
Certification
WEEE, CE
Power max.
7,5 W
Power maintained
7,5 W
Power non-maintained
3,6 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

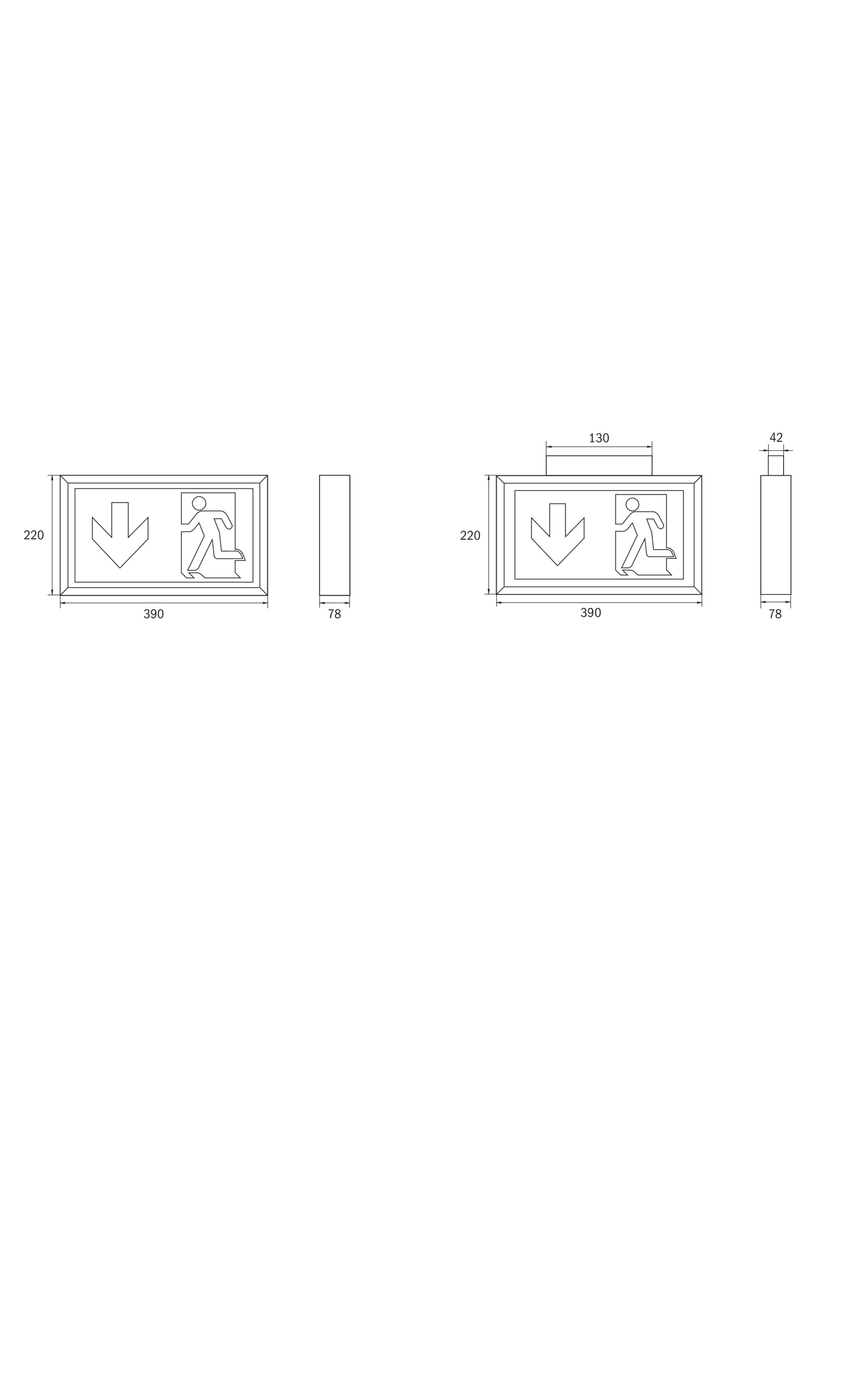

Depth
78 mm
Width
390 mm
Height
220 mm
Weight
1.57
Weight incl. packaging
1.73
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Clip
Dimming function
Yes
Luminous flux mains
150 lm
Luminous flux emergency
150 lm
Customs tariff number
94056120
EAN
4260123689889
Luminaire type
Exit sign
Mounting
Universal
Recognition distance
34 m
Pictograph
Set
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP43
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
2
Supply
Self-contained
Monitoring
Wireless Professional (WL)
Bridging time
3 h
Battery
NIMH 12 V/0,8 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
- V
Power max.
7,5 W
Power maintained
7,5 W
Power non-maintained
3,6 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
78 mm
Width
390 mm
Height
220 mm
Weight
1.57
Weight incl. packaging
1.73
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Clip
Dimming function
Yes
Luminous flux mains
150 lm
Luminous flux emergency
150 lm
Customs tariff number
94056120
EAN
4260123689889

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
