KBU423SC

Exit sign, Safety luminaire
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Flexible plastic safety luminaire for universal mounting, which can be extended to become an emergency exit sign luminaire. The cuboid plastic housing is discreetly reduced to the essentials.

Because of the modular system, the luminaire can be converted into an emergency exit sign luminaire without any tools and without having to be disassembled. The panes for fitting the pictograms are available separately.

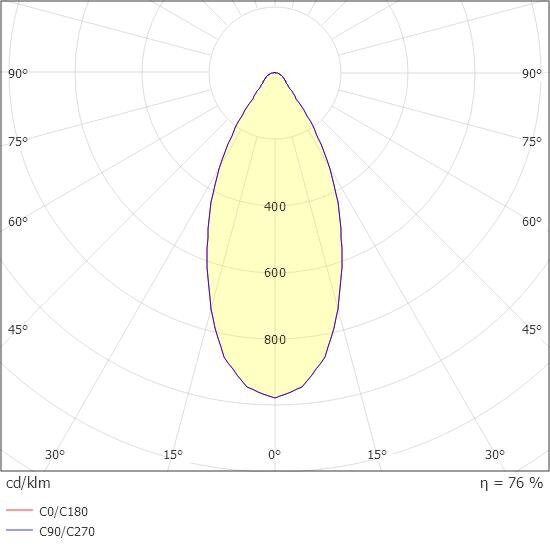

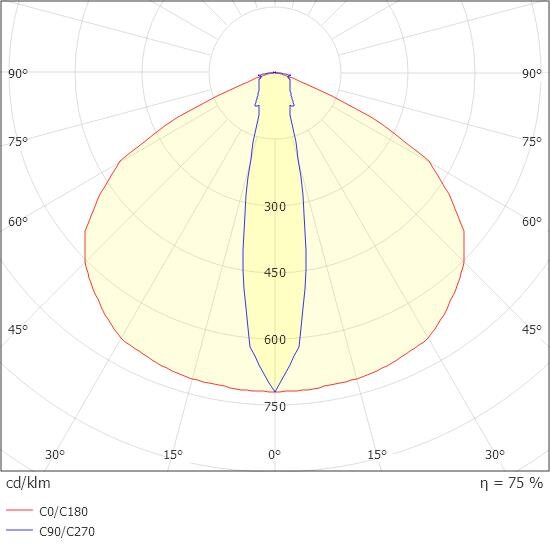

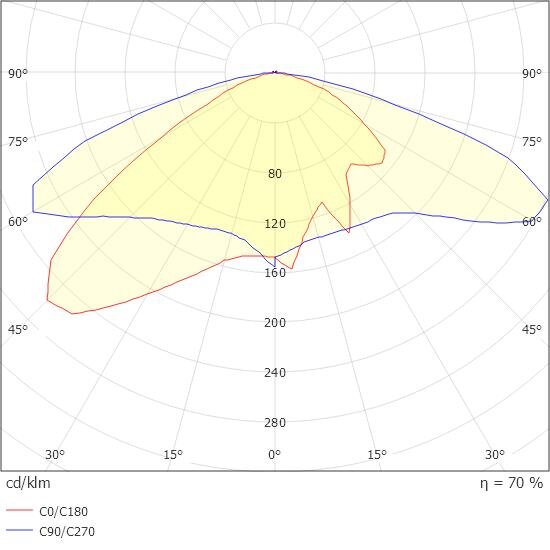

Automatic monitoring of safety luminaire with SelfControl. The luminaire is fitted with the innovative flexible plug-in system for rapid use of the right lens. The hall lens is supplied with every luminaire. A round lens, spotlight lens and beam lens are available as options. Universal mounting includes fitting on the wall and ceiling as well as the option of fitting in the ceiling in conjunction with the mounting frame available.


Product data

Luminaire type
Exit sign, Safety luminaire
Insulation class
2
Mounting
Universal
Monitoring
SelfControl (SC)
Recognition distance
14 m, 22 m, 30 m
Bridging time
3 h
Pictograph
acc. to Specification
Battery
LiFePO4 6,4 V/1,6 Ah
Illuminant
LED
Power max.
4,2 W
Housing material
Plastic
Power DS
3,3 W
Housing color
white
Power BS
0,9 W
Protection type (IP)
IP65
Ambient temperature DS
-5 °C to 35 °C
Impact resistance (IK)
5
Ambient temperature BS
-5 °C to 40 °C
Certification
WEEE, CE, 5 earys warranty

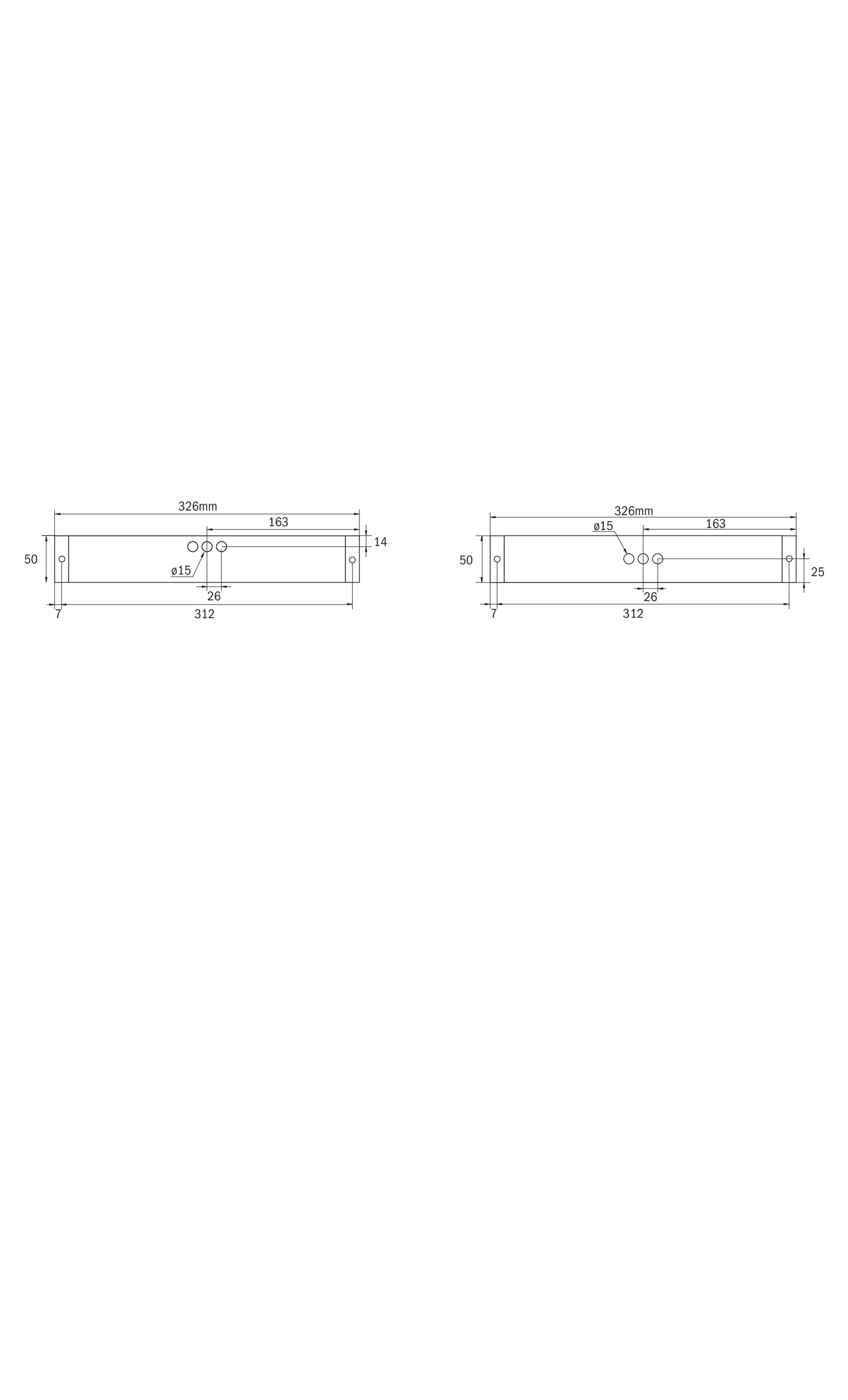

Depth
326 mm
Width
50 mm
Height
50 mm
Weight
0.43
Weight incl. packaging
0.48
Luminous flux mains
260 lm
Luminous flux emergency
260 lm
Customs tariff number
94056120
EAN
4260766556265
Luminaire type
Exit sign, Safety luminaire
Mounting
Universal
Recognition distance
14 m, 22 m, 30 m
Pictograph
acc. to Specification
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP65
Impact resistance (IK)
5
Certification
WEEE, CE, 5 earys warranty
Insulation class
2
Monitoring
SelfControl (SC)
Bridging time
3 h
Battery
LiFePO4 6,4 V/1,6 Ah
Power max.
4,2 W
Power DS
3,3 W
Power BS
0,9 W
Ambient temperature DS
-5 °C to 35 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
326 mm
Width
50 mm
Height
50 mm
Weight
0.43
Weight incl. packaging
0.48
Luminous flux mains
260 lm
Luminous flux emergency
260 lm
Customs tariff number
94056120
EAN
4260766556265

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
