KBU421WL

Exit sign, Safety luminaire Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

LED emergency exit sign / safety luminaire in accordance with DIN EN 60598-1, DIN EN 60598-2-22, DIN EN 7010 and DIN EN 1838.
Cuboid plastic housing, luminaire discreetly reduced to the essentials. Modular design and universal mounting for use as safety luminaire with and without the use of pictograms. Because of the modular system, the luminaire can be converted into an emergency exit sign luminaire at any time without any tools and without having to be disassembled. The panes for fitting the pictograms are ordered separately.

The luminaire is fitted with four pre-mounted hall lenses as standard. Thanks to the innovative integrated lens holder with a rapid fitting fixture, flexible use of various lens types is possible depending on the specific application.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional. The luminaire is fitted with the innovative flexible plug-in system for rapid use of the right lens. The hall lens is supplied with every luminaire. A round lens, spotlight lens and beam lens are available as options. Universal mounting includes fitting on the wall and ceiling as well as the option of fitting in the ceiling in conjunction with the mounting frame available.


Product data

Luminaire type
Exit sign, Safety luminaire
Insulation class
2
Mounting
Universal
Supply
Single Battery
Recognition distance
14 m, 22 m, 30 m
Monitoring
Wireless Professional (WL)
Pictograph
acc. to Specification
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 6,4 V/1,2 Ah
Housing material
Plastic
Operating mode
Standby circuit / permanent circuit
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 Hz
Impact resistance (IK)
5
Power max.
7,5 W
Certification
WEEE, CE, 5 earys warranty
Power DS
5,7 W
Power BS
0,8 W
Ambient temperature DS
-5 °C to 35 °C
Ambient temperature BS
-5 °C to 35 °C

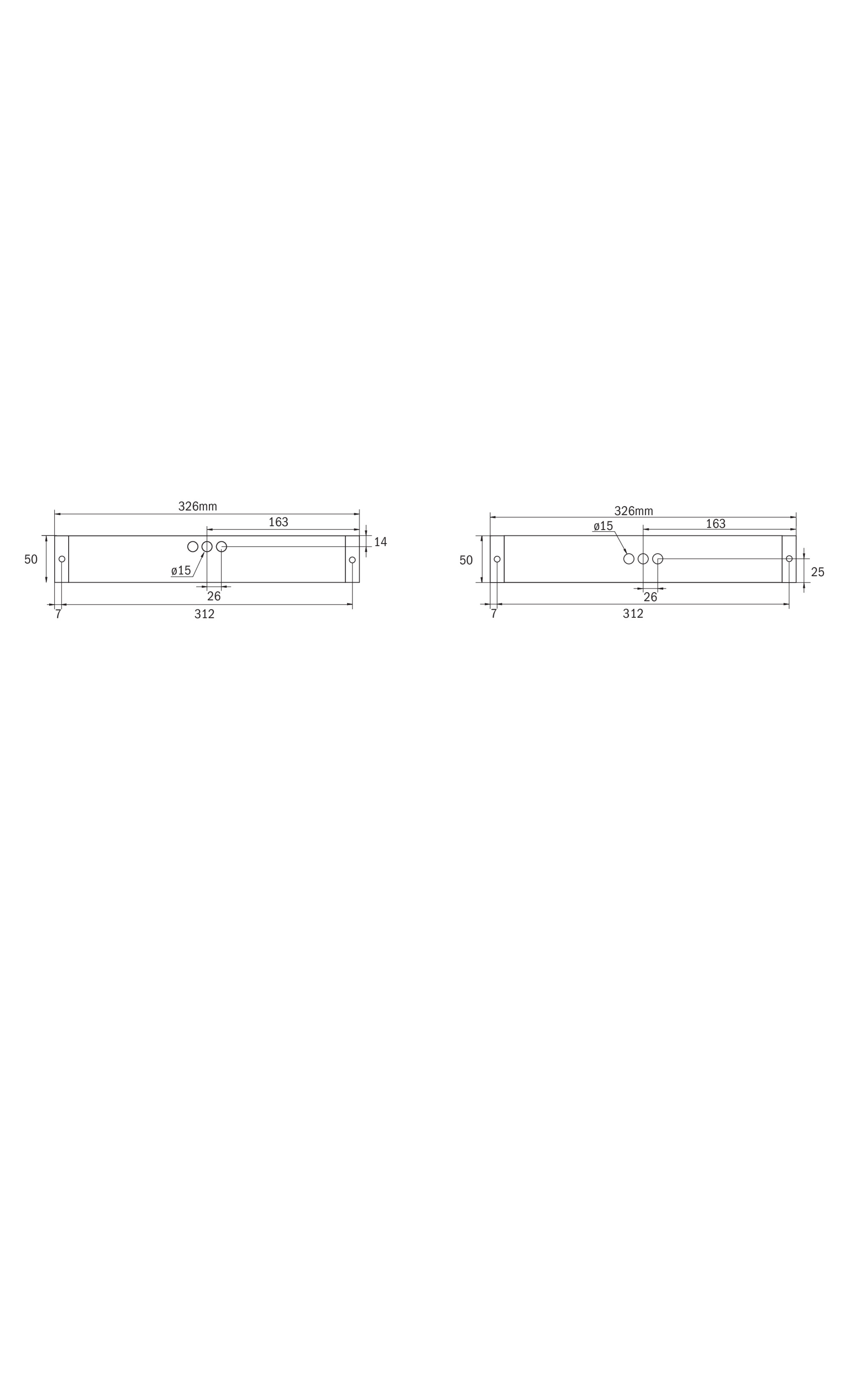

Depth
326 mm
Width
50 mm
Height
50 mm
Weight
0.55
Weight incl. packaging
0.6
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
520 lm
Luminous flux emergency
460 lm
Customs tariff number
94056120
EAN
4260766551970
Luminaire type
Exit sign, Safety luminaire
Mounting
Universal
Recognition distance
14 m, 22 m, 30 m
Pictograph
acc. to Specification
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP65
Impact resistance (IK)
5
Certification
WEEE, CE, 5 earys warranty
Insulation class
2
Supply
Single Battery
Monitoring
Wireless Professional (WL)
Bridging time
1 h
Battery
LiFePO4 6,4 V/1,2 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 Hz
Power max.
7,5 W
Power DS
5,7 W
Power BS
0,8 W
Ambient temperature DS
-5 °C to 35 °C
Ambient temperature BS
-5 °C to 35 °C
Depth
326 mm
Width
50 mm
Height
50 mm
Weight
0.55
Weight incl. packaging
0.6
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
520 lm
Luminous flux emergency
460 lm
Customs tariff number
94056120
EAN
4260766551970

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
