KBU029

Exit sign, Safety luminaire Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Flexible plastic safety luminaire for universal mounting, which can be extended to become an emergency exit sign luminaire. The cuboid plastic housing is discreetly reduced to the essentials.

Because of the modular system, the luminaire can be converted into an emergency exit sign luminaire without any tools and without having to be disassembled. The panes for fitting the pictograms are available separately.

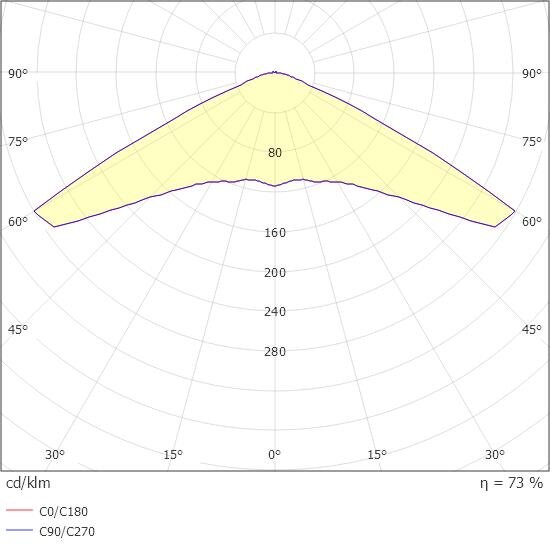

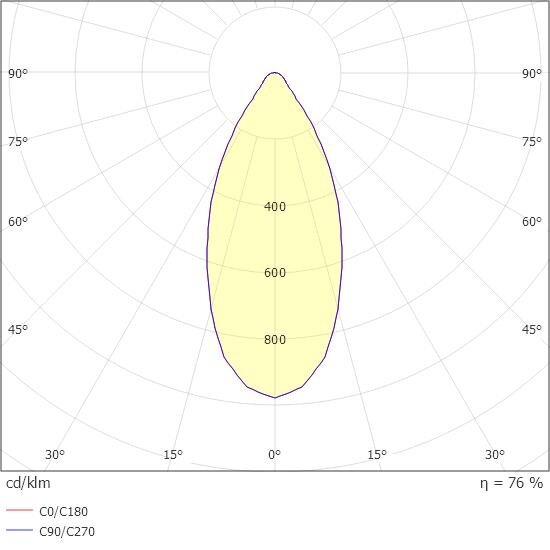

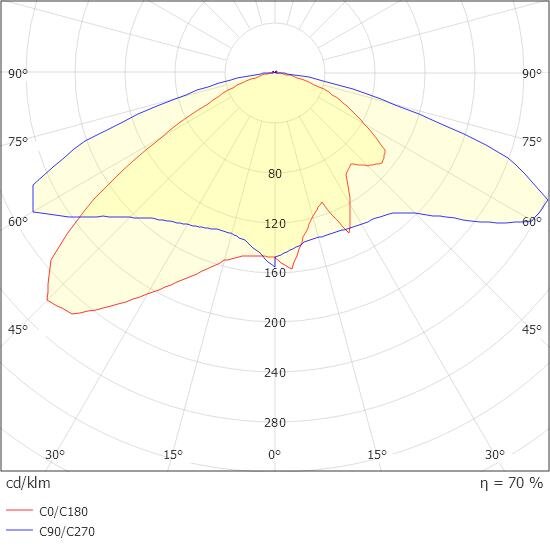

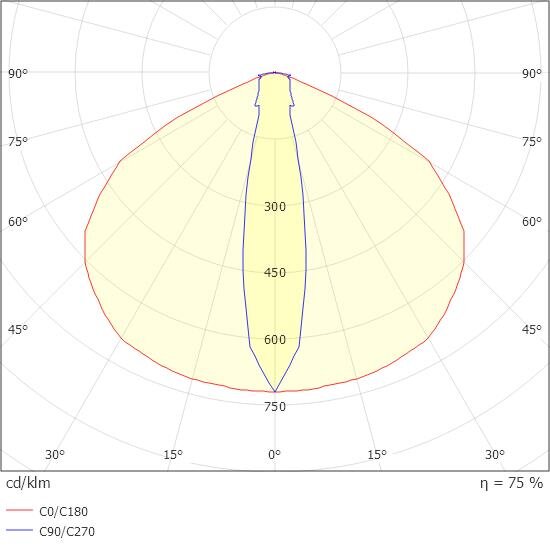

The luminaire is fitted with the innovative flexible plug-in system for rapid use of the right lens. The hall lens is supplied with every luminaire. A round lens, spotlight lens and beam lens are available as options. Universal mounting includes fitting on the wall and ceiling as well as the option of fitting in the ceiling in conjunction with the mounting frame available.


Product data

Luminaire type
Exit sign, Safety luminaire
Insulation class
2
Mounting
Universal
Supply
Centralised power supply systems
Recognition distance
14 m, 22 m, 30 m
Monitoring
Without monitoring
Pictograph
acc. to Specification
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Plastic
Operating mode
Permanent circuit
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 / 60 Hz
Impact resistance (IK)
5
Input voltage DC
100-254 V
Certification
WEEE, TÜV Rheinland Type approved, CE, ENEC
Power max.
4,6 W
Power DS
4,6 W
Power BS
0 W
Ambient temperature DS
-30 °C - 35 °C
Ambient temperature BS
-30 °C - 35 °C

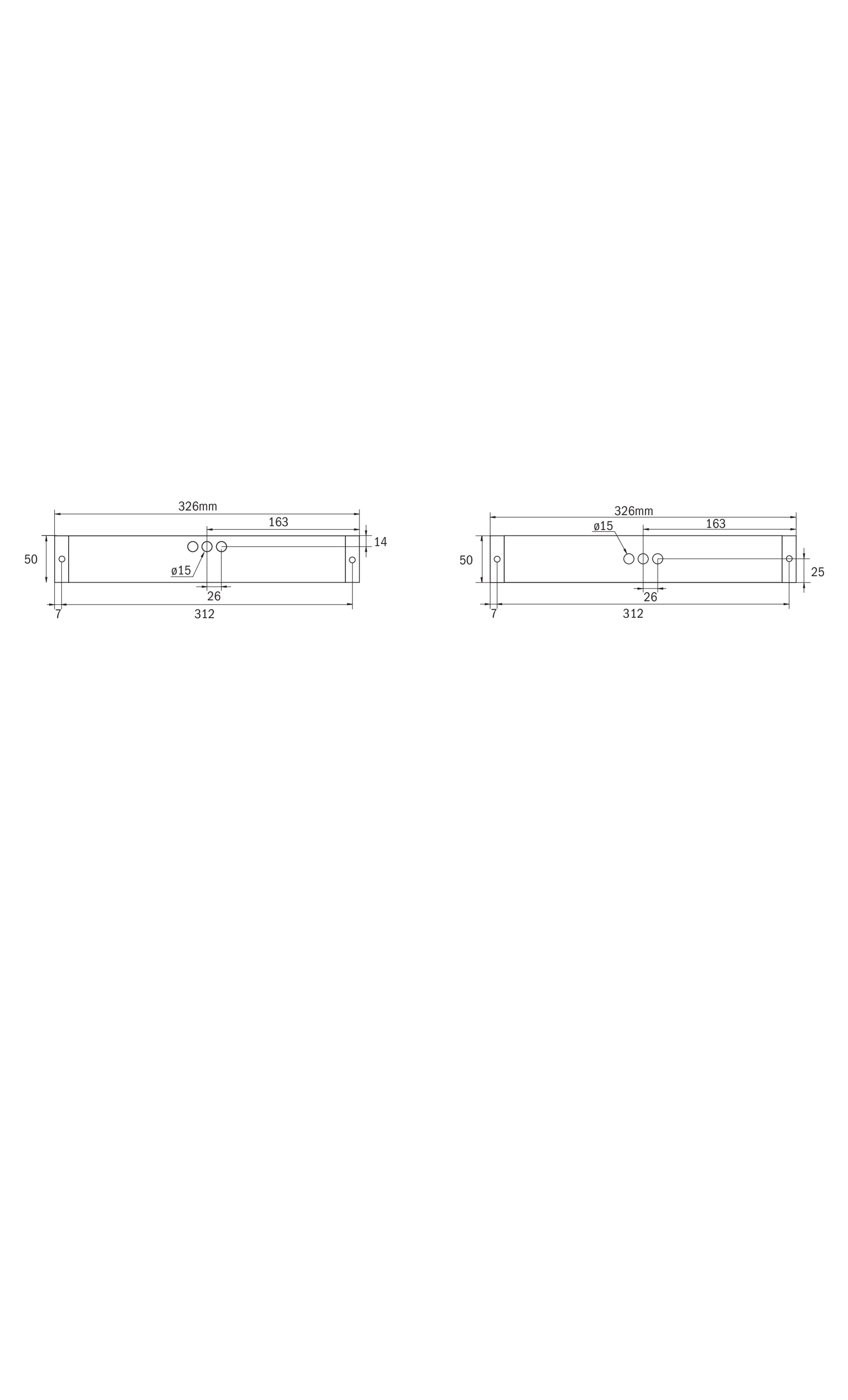

Depth
326 mm
Width
50 mm
Height
50 mm
Weight
0.37
Weight incl. packaging
0.42
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
520 lm
Luminous flux emergency
520 lm
Customs tariff number
94056120
EAN
4260123683504
Luminaire type
Exit sign, Safety luminaire
Mounting
Universal
Recognition distance
14 m, 22 m, 30 m
Pictograph
acc. to Specification
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP65
Impact resistance (IK)
5
Certification
WEEE, TÜV Rheinland Type approved, CE, ENEC
Insulation class
2
Supply
Centralised power supply systems
Monitoring
Without monitoring
Bridging time
CPS
Battery
/
Operating mode
Permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
100-254 V
Power max.
4,6 W
Power DS
4,6 W
Power BS
0 W
Ambient temperature DS
-30 °C - 35 °C
Ambient temperature BS
-30 °C - 35 °C
Depth
326 mm
Width
50 mm
Height
50 mm
Weight
0.37
Weight incl. packaging
0.42
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
520 lm
Luminous flux emergency
520 lm
Customs tariff number
94056120
EAN
4260123683504

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
