ILDL421SC-TT

Emergency light Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

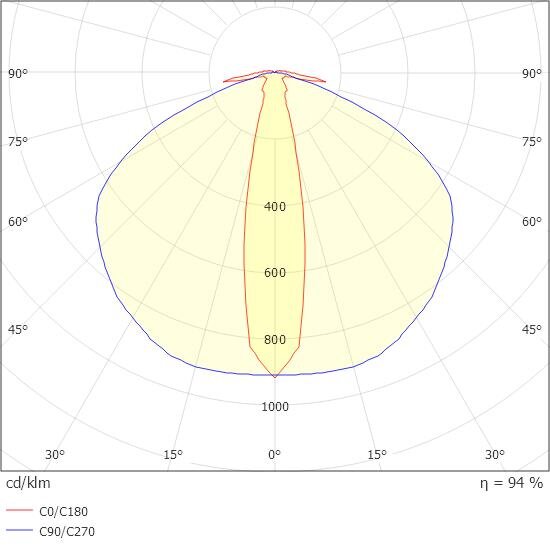

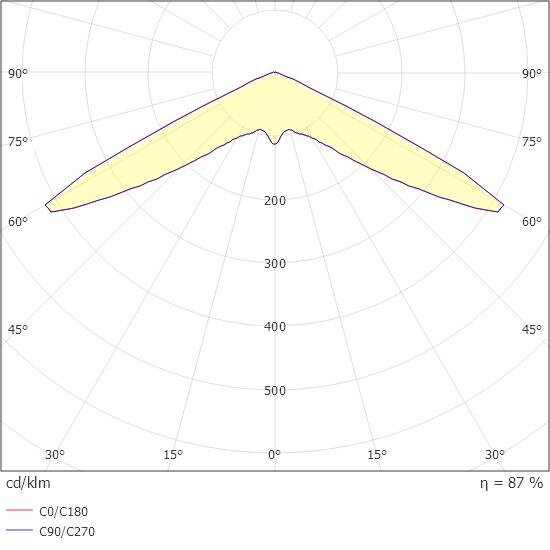

The LED safety luminaire IL with its unobtrusive design is a real all-rounder. it is equipped for virtually all requirements and always provides the right solution. Since the status LED is fitted in the lens, the harmony of the discreet housing is not interrupted. The innovative integrated lens holder with a rapid fitting fixture permits the flexible use of various lens types depending on the specific application. A round lens and hall lens are supplied with every luminaire, allowing it to be adapted perfectly to the respective mounting situation.

The IL surface-mounted luminaire comprises just 2 parts; the ceiling section contains the mains supply terminals. The actual luminaire is mounted without the need for tools and is free of mains voltage upon disassembly.

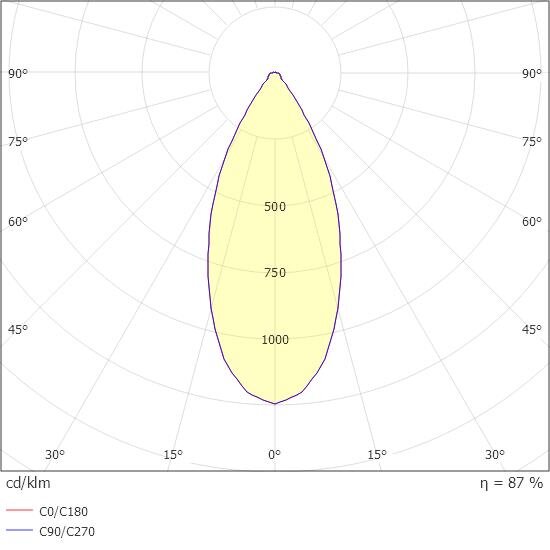

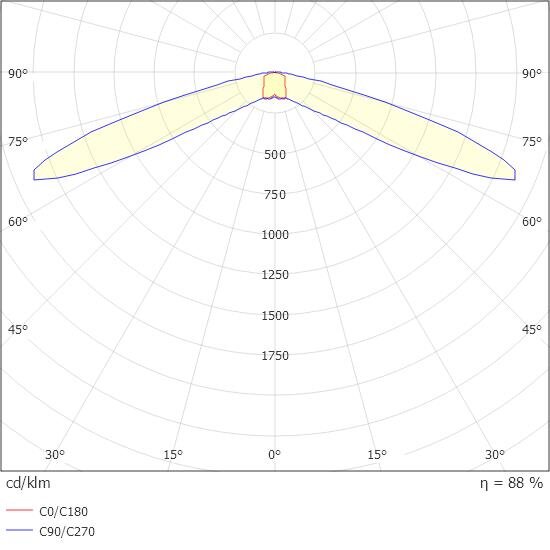

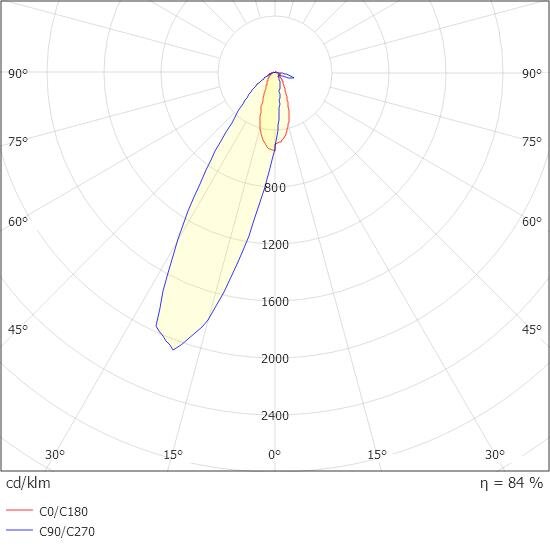

Automatic monitoring of safety luminaire with SelfControl. The innovative integrated lens holder with a rapid fitting fixture permits the flexible use of various lens types. Using the right lens allows the distribution of light to be matched perfectly to the application and simplifies illumination which satisfies all relevant standards. A round lens and hall lens are supplied with every luminaire, allowing it to be adapted perfectly to the respective mounting situation. Other lenses, such as a spotlight lens, beam lens or H lens, are available as options. The luminaire is equipped with a special lithium iron phosphate battery that can also be used at low temperatures. This technology ensures that both charging and discharging of the battery takes place within the temperature range specified for the luminaire.


Product data

Luminaire type
Emergency light
Monitoring
SelfControl (SC)
Mounting
Surface mounting
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 3,2 V/3,3 Ah
Housing material
Polycarbonate
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP40
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Power max.
3 W
Certification
WEEE, CE, 5 years warranty
Power maintained
1,9 W
Insulation class
2
Power non-maintained
0,2 W
Supply
Self-contained
Ambient temperature maintained mode
-15 °C to 40 °C
Ambient temperature non-maintained mode
-15 °C to 40 °C

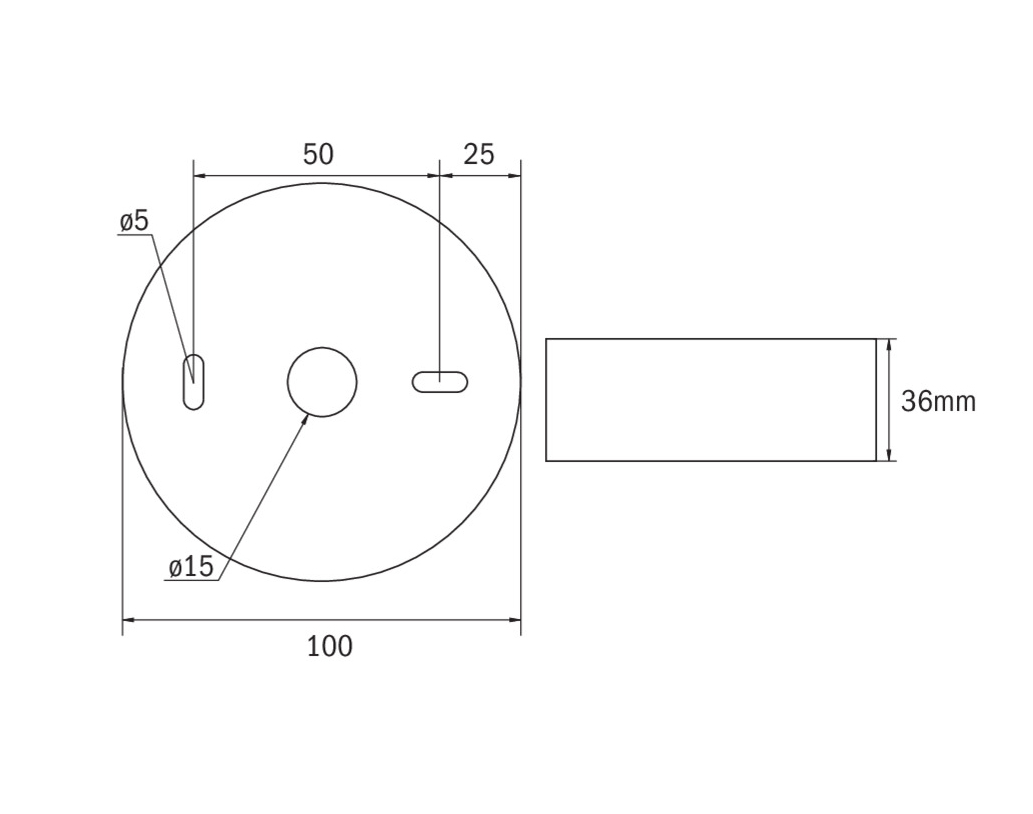

Height
36 mm
Diameter
100 mm
Weight
0.2
Weight incl. packaging
0.24
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
130 lm
Luminous flux emergency
250 lm
Customs tariff number
94056120
EAN
4262483024751
Luminaire type
Emergency light
Mounting
Surface mounting
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE, 5 years warranty
Insulation class
2
Supply
Self-contained
Monitoring
SelfControl (SC)
Bridging time
1 h
Battery
LiFePO4 3,2 V/3,3 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Power max.
3 W
Power maintained
1,9 W
Power non-maintained
0,2 W
Ambient temperature maintained mode
-15 °C to 40 °C
Ambient temperature non-maintained mode
-15 °C to 40 °C
Height
36 mm
Diameter
100 mm
Weight
0.2
Weight incl. packaging
0.24
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
130 lm
Luminous flux emergency
250 lm
Customs tariff number
94056120
EAN
4262483024751

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
