HX

Safety luminaire
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

LED safety light in accordance to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.
Rechargeable portable spotlight with 3W Power LED and magnetic base, for flexible mounting on metals e.g. control cabinets.

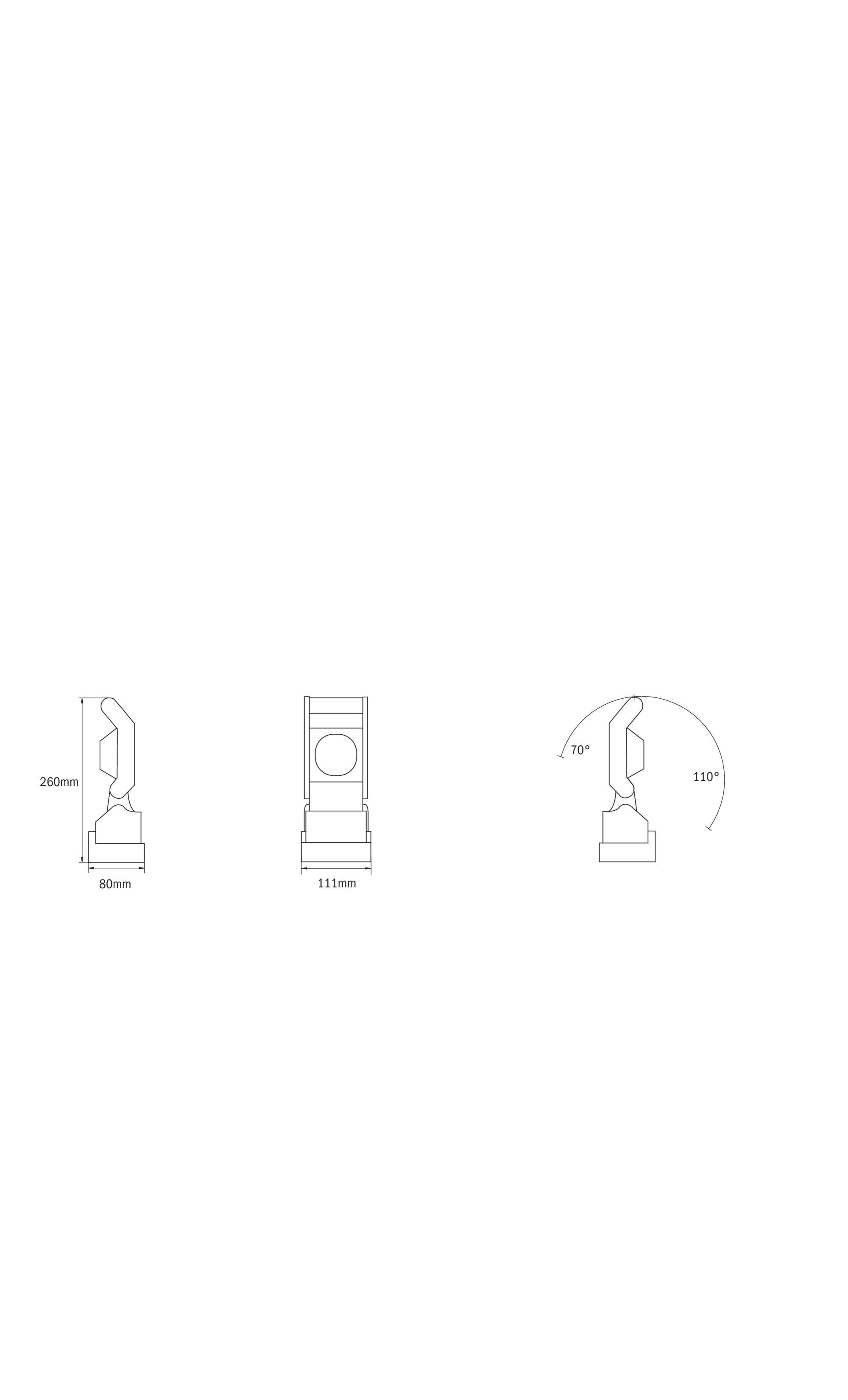

In case of a power failure the emergency light function switches on automatically. The luminaire head can be swivelled backwards by 110° and forwards by 70°.
Includes a flashing and dimming feature for longer burning periods. Wall bracket with charging function, 230V power supply unit (optional 12V vehicle charger).


Product data

Luminaire type
Safety luminaire
Monitoring
Without monitoring
Mounting
Wall mounting
Bridging time
3 h
Pictograph
No
Battery
LiFePO4 7,4 V/
Illuminant
LED
Power max.
3 W
Housing material
Plastic
Ambient temperature DS
0 °C - 40 °C
Housing color
Black
Ambient temperature BS
0 °C - 40 °C
Protection type (IP)
IP54
Depth
104 mm
Impact resistance (IK)
≥ 3
Width
130 mm
Certification
WEEE, CE
Height
300 mm
Insulation class
2
Weight
0.97
Weight incl. packaging
1.16
Luminous flux mains
180 lm
Luminous flux emergency
180 lm
Customs tariff number
85131000
EAN
4260349824293
Luminaire type
Safety luminaire
Mounting
Wall mounting
Pictograph
No
Illuminant
LED
Housing material
Plastic
Housing color
Black
Protection type (IP)
IP54
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
2
Monitoring
Without monitoring
Bridging time
3 h
Battery
LiFePO4 7,4 V/
Power max.
3 W
Ambient temperature DS
0 °C - 40 °C
Ambient temperature BS
0 °C - 40 °C
Depth
104 mm
Width
130 mm
Height
300 mm
Weight
0.97
Weight incl. packaging
1.16
Luminous flux mains
180 lm
Luminous flux emergency
180 lm
Customs tariff number
85131000
EAN
4260349824293

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
