FMDS428WL

Emergency light Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

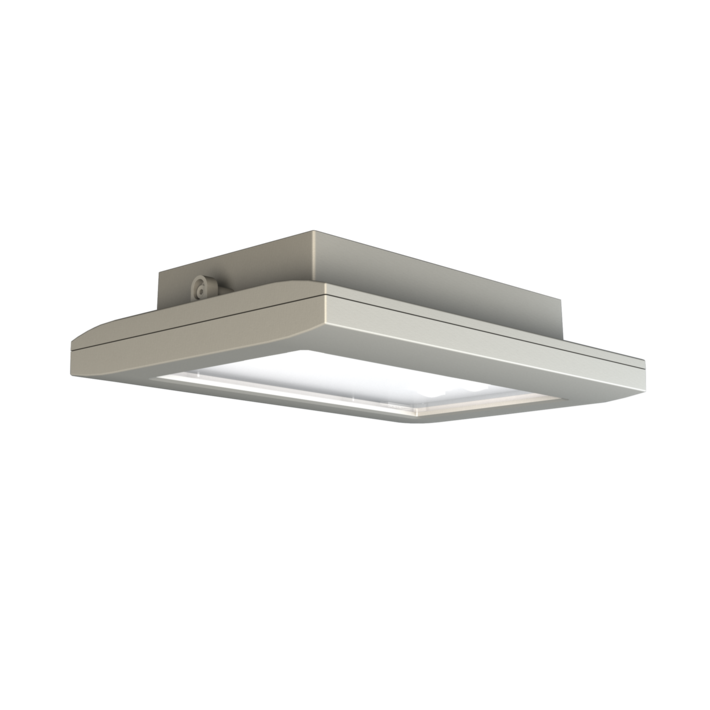

Robust zinc die-cast safety luminaire for mounting on the ceiling and for illuminating escape and emergency routes.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional.


Product data

Luminaire type
Emergency light
Supply
Self-contained
Mounting
Surface mounting
Monitoring
Wireless Professional (WL)
Pictograph
No
Bridging time
8 h
Illuminant
LED
Battery
LiFePO4 6,4 V/3,3 Ah
Housing material
Zinc die-cast
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 Hz
Impact resistance (IK)
8
Power max.
7,5 W
Certification
WEEE, CE, 5 years warranty, HACCP
Power maintained
5,7 W
Insulation class
1
Power non-maintained
0,8 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

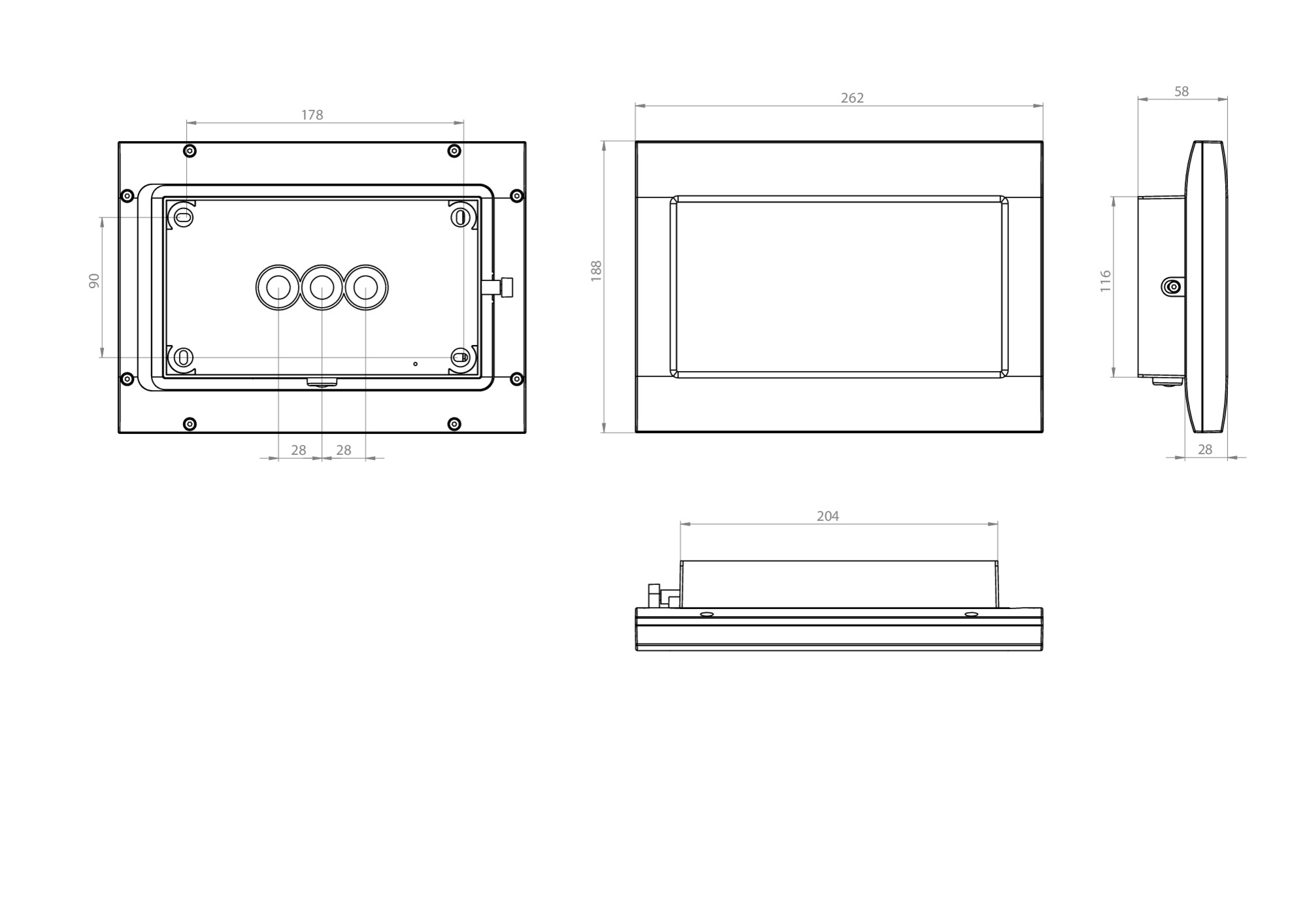

Depth
58 mm
Width
262 mm
Height
188 mm
Weight
2.15
Weight incl. packaging
2.25
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
250 lm
Luminous flux emergency
245 lm
Customs tariff number
94056180
EAN
4260766552441
Luminaire type
Emergency light
Mounting
Surface mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
White
Protection type (IP)
IP65
Impact resistance (IK)
8
Certification
WEEE, CE, 5 years warranty, HACCP
Insulation class
1
Supply
Self-contained
Monitoring
Wireless Professional (WL)
Bridging time
8 h
Battery
LiFePO4 6,4 V/3,3 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
230 V
Input frequency
50 Hz
Power max.
7,5 W
Power maintained
5,7 W
Power non-maintained
0,8 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
58 mm
Width
262 mm
Height
188 mm
Weight
2.15
Weight incl. packaging
2.25
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
250 lm
Luminous flux emergency
245 lm
Customs tariff number
94056180
EAN
4260766552441

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic


Accessories
