FMDS428SC-TT

Emergency light Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Robust zinc die-cast safety luminaire for mounting on the ceiling and for illuminating escape and emergency routes.

Automatic monitoring of safety luminaire with SelfControl. The luminaire is equipped with a special lithium iron phosphate battery that can also be used at low temperatures. This technology ensures that both charging and discharging of the battery takes place within the temperature range specified for the luminaire.


Product data

Luminaire type
Emergency light
Monitoring
SelfControl (SC)
Mounting
Surface mounting
Bridging time
8 h
Pictograph
No
Battery
LiFePO4 3,2 V/3,3 Ah
Housing material
Zinc die-cast
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
180 V - 250 V
Protection type (IP)
IP65
Input frequency
50 Hz
Impact resistance (IK)
8
Power max.
5,3 W
Certification
WEEE, CE, 5 years warranty, HACCP
Power maintained
3,9 W
Insulation class
1
Power non-maintained
2 W
Supply
Self-contained
Ambient temperature maintained mode
-15 °C to 40 °C
Ambient temperature non-maintained mode
-15 °C to 40 °C

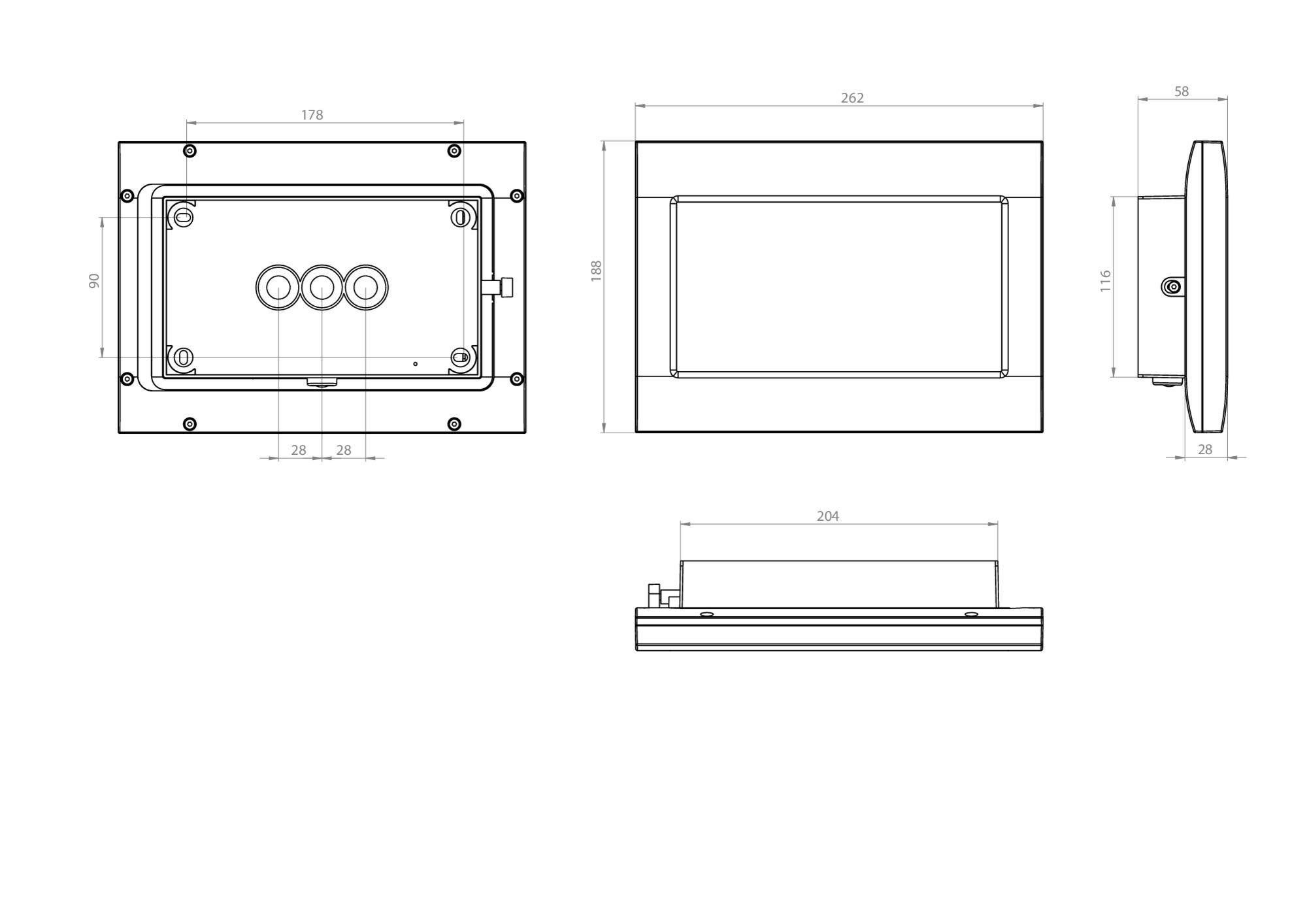

Depth
58 mm
Width
262 mm
Height
188 mm
Weight
2.14
Weight incl. packaging
2.24
Connection cross-section
2,5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
210 lm
Luminous flux emergency
210 lm
Customs tariff number
94056180
EAN
4262483022535
Luminaire type
Emergency light
Mounting
Surface mounting
Pictograph
No
Housing material
Zinc die-cast
Housing color
White
Protection type (IP)
IP65
Impact resistance (IK)
8
Certification
WEEE, CE, 5 years warranty, HACCP
Insulation class
1
Supply
Self-contained
Monitoring
SelfControl (SC)
Bridging time
8 h
Battery
LiFePO4 3,2 V/3,3 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
180 V - 250 V
Input frequency
50 Hz
Power max.
5,3 W
Power maintained
3,9 W
Power non-maintained
2 W
Ambient temperature maintained mode
-15 °C to 40 °C
Ambient temperature non-maintained mode
-15 °C to 40 °C
Depth
58 mm
Width
262 mm
Height
188 mm
Weight
2.14
Weight incl. packaging
2.24
Connection cross-section
2,5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
210 lm
Luminous flux emergency
210 lm
Customs tariff number
94056180
EAN
4262483022535

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
