DOS021SC

Safety luminaire Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Small LED safety luminaire, for recessed and surface mounting, with great effect. The small dimensions and transparent housing material make completely unobtrusive mounting possible.

This variant is intended for installation in existing luminaire housings. The mounting plate/clips, as well as the emergency light technology, are supplied.

Automatic monitoring of safety luminaire with SelfControl.


Product data

Luminaire type
Safety luminaire
Supply
Single Battery
Mounting
Universal
Monitoring
SelfControl (SC)
Pictograph
No
Bridging time
1 h
Illuminant
LED
Battery
NIMH 4,8 V/2,0 Ah
Housing material
Plastic
Operating mode
Standby circuit / permanent circuit
Housing color
Transparent
Input voltageAC
230 V
Protection type (IP)
IP20
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Power max.
3 W
Certification
WEEE, CE
Power DS
1,6 W
Insulation class
2
Power BS
0,35 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

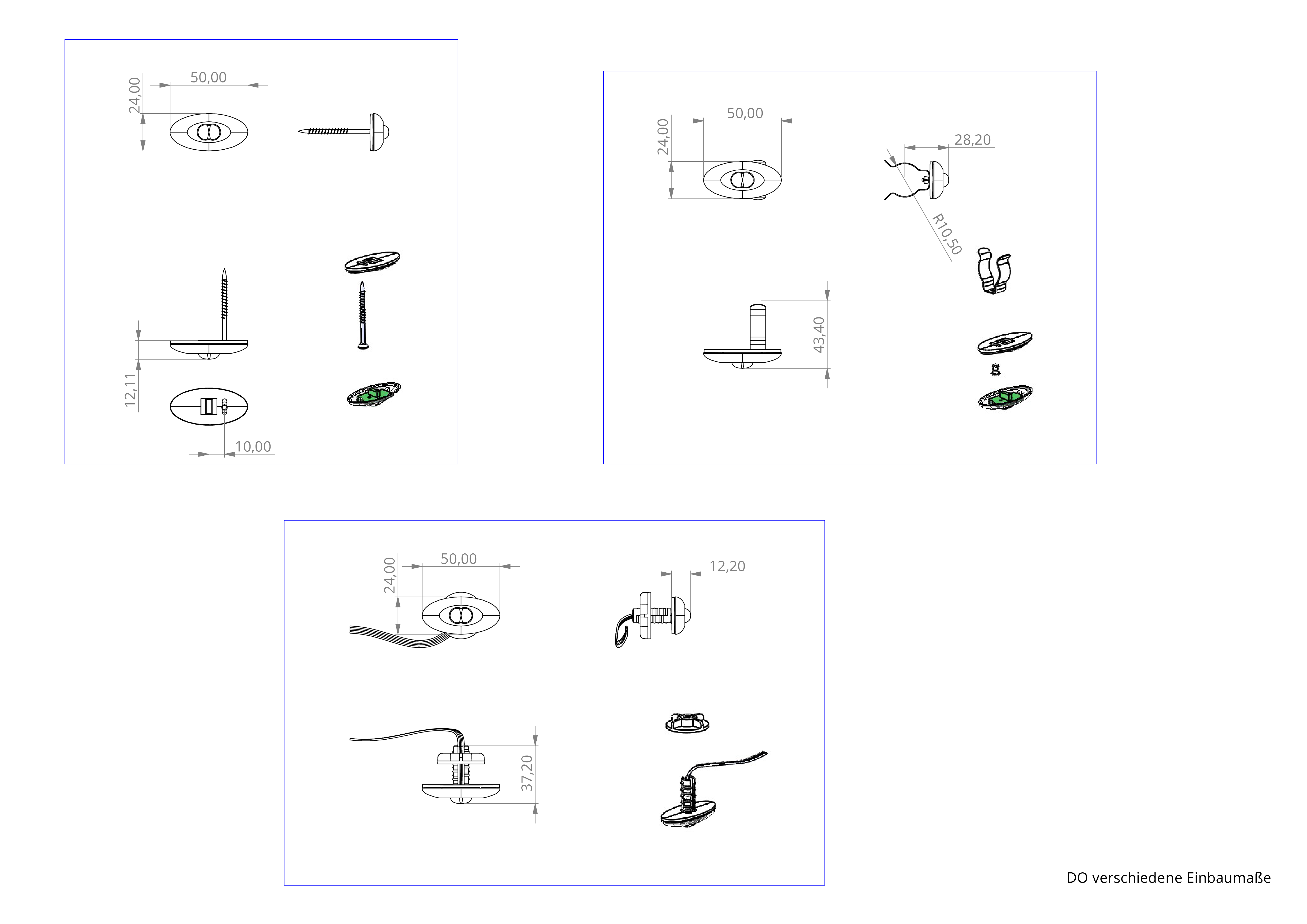

Depth
24 mm
Width
50 mm
Height
12 mm
Installation dimensions Diameter
10.5 mm
Weight
0.21
Weight incl. packaging
0.29
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes

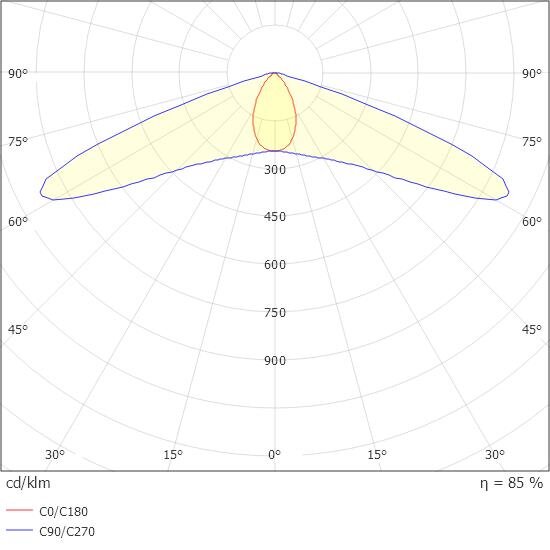

Luminous flux mains
140 lm
Luminous flux emergency
140 lm
Customs tariff number
94056120
EAN
4260682143891
Luminaire type
Safety luminaire
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Plastic
Housing color
Transparent
Protection type (IP)
IP20
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
2
Supply
Single Battery
Monitoring
SelfControl (SC)
Bridging time
1 h
Battery
NIMH 4,8 V/2,0 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Power max.
3 W
Power DS
1,6 W
Power BS
0,35 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
24 mm
Width
50 mm
Height
12 mm
Installation dimensions Diameter
10.5 mm
Weight
0.21
Weight incl. packaging
0.29
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
140 lm
Luminous flux emergency
140 lm
Customs tariff number
94056120
EAN
4260682143891

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
