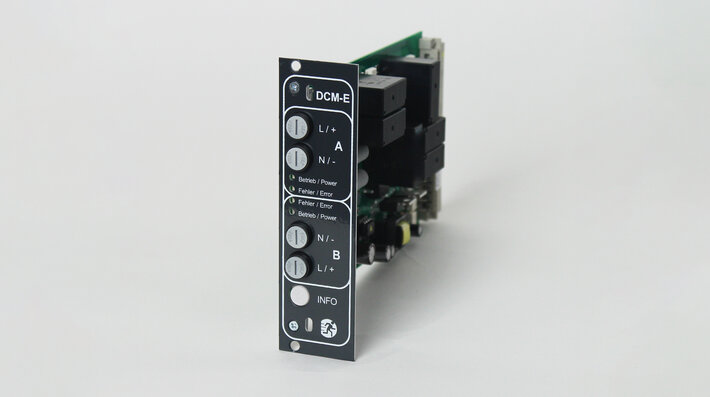

The DCM circuit module, in service-friendly 19 “plug-in technology, is used for the
voltage supply and monitoring of safety and escape sign luminaires.
The circuit module is equipped with two circuits, each with a separate fuse. Each circuit
has its own AC / DC switchover.
Product data
Material
Steel sheet
Depth
174 mm
Housing color
RAL 5010
Width
35 mm
Protection type (IP)
IP 00
Height
128 mm
Input voltageAC
230 V V
Weight
0.28 kg
Input frequency
50 / 60 Hz
Customs tariff number
85389091
Power factor
- PF
Material
Steel sheet
Housing color
RAL 5010
Protection type (IP)
IP 00
Input voltageAC
230 V V
Input frequency
50 / 60 Hz
Power factor
- PF
Depth
174 mm
Width
35 mm
Height
128 mm
Weight
0.28 kg
Customs tariff number
85389091
