AXD408WL

Exit sign Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Modern zinc die-cast emergency exit sign luminaire for surface mounting on the ceiling. Escape and emergency routes can be identified on either one or two sides.

It is part of the A series luminaire family, which provides solutions for any mounting and has won the German Design Award for its uniform, straight-line design.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Recessed mounting
Supply
Single Battery
Recognition distance
30 m
Monitoring
Wireless Professional (WL)
Pictograph
Set
Bridging time
8 h
Illuminant
LED
Battery
LiFePO4 6,4 V/1,2 Ah
Housing material
Zinc die-cast
Operating mode
Standby circuit / permanent circuit
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP40
Input frequency
50 Hz
Impact resistance (IK)
≥ 3
Power max.
5,6 W
Certification
WEEE, CE, 5 earys warranty
Power DS
4,5 W
Power BS
0,8 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

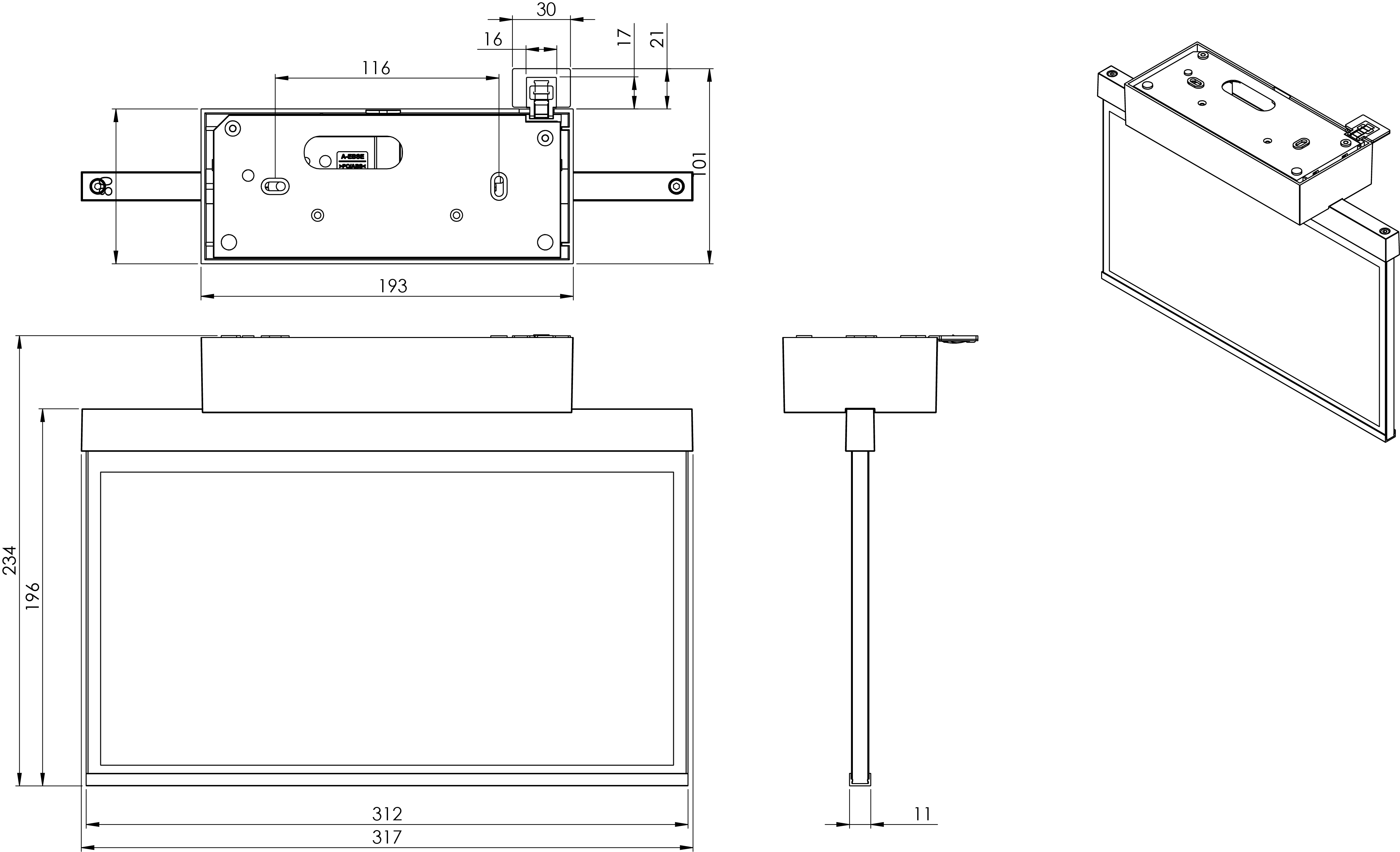

Depth
80 mm
Width
312 mm
Height
230 mm
Weight
1.9
Weight incl. packaging
2.39
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Customs tariff number
94056180
EAN
4260682153555
Luminaire type
Exit sign
Mounting
Recessed mounting
Recognition distance
30 m
Pictograph
Set
Illuminant
LED
Housing material
Zinc die-cast
Housing color
white
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE, 5 earys warranty
Insulation class
2
Supply
Single Battery
Monitoring
Wireless Professional (WL)
Bridging time
8 h
Battery
LiFePO4 6,4 V/1,2 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 Hz
Power max.
5,6 W
Power DS
4,5 W
Power BS
0,8 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
80 mm
Width
312 mm
Height
230 mm
Weight
1.9
Weight incl. packaging
2.39
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Customs tariff number
94056180
EAN
4260682153555

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
