ASMU011SC-WS

Exit sign Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Multi-functional aluminium emergency exit sign luminaire for universal mounting. As a result of the clever structure, the recesses for cable entry and fastening are integrated, both for ceiling and wall mounting. Visually appealing side parts cover the lock mechanism so that the luminaire conveys a harmonious and fully closed impression.

Automatic monitoring of safety luminaire with SelfControl. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
1
Mounting
Universal
Supply
Single Battery
Recognition distance
22 m
Monitoring
SelfControl (SC)
Pictograph
Set
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 3,2 V/3,3 Ah
Housing material
Aluminium
Operating mode
Standby circuit / permanent circuit
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP40
Input frequency
50 / 60 Hz
Impact resistance (IK)
3
Input voltage DC
- V
Certification
WEEE, CE
Power max.
4,6 W
Power DS
3,3 W
Power BS
1 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

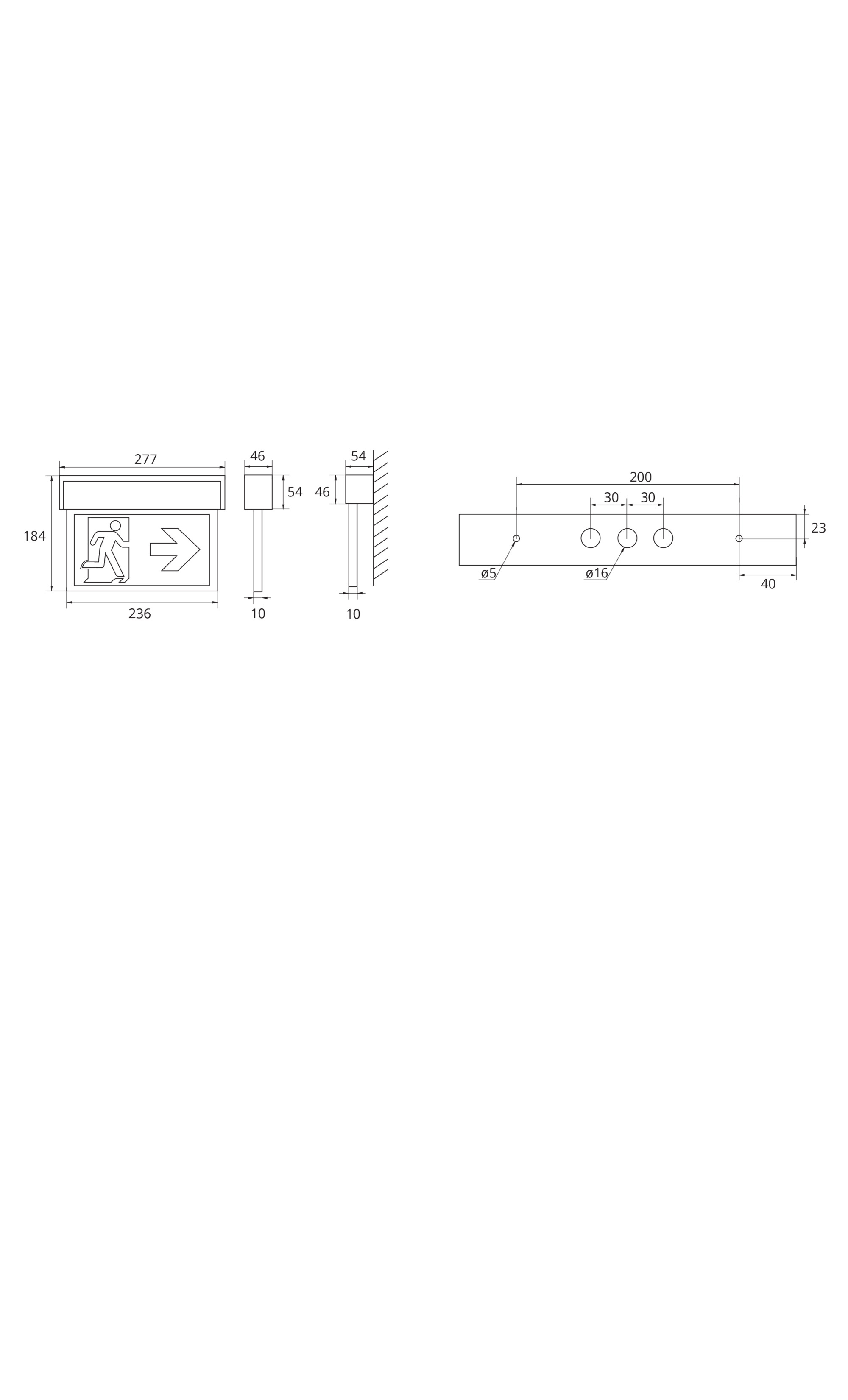

Depth
54 mm
Width
277 mm
Height
184 mm
Weight
0.89
Weight incl. packaging
1.06
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056180
EAN
4260682144362
Luminaire type
Exit sign
Mounting
Universal
Recognition distance
22 m
Pictograph
Set
Illuminant
LED
Housing material
Aluminium
Housing color
white
Protection type (IP)
IP40
Impact resistance (IK)
3
Certification
WEEE, CE
Insulation class
1
Supply
Single Battery
Monitoring
SelfControl (SC)
Bridging time
1 h
Battery
LiFePO4 3,2 V/3,3 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
- V
Power max.
4,6 W
Power DS
3,3 W
Power BS
1 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
54 mm
Width
277 mm
Height
184 mm
Weight
0.89
Weight incl. packaging
1.06
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056180
EAN
4260682144362

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
