AMD009ML-AZ

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Modern zinc die-cast emergency exit sign luminaire for surface mounting on the ceiling. Escape and emergency routes can be identified on either one or two sides.

It is part of the A series luminaire family, which provides solutions for any mounting and has won the German Design Award for its uniform, straight-line design.

Control and monitoring via central power supply system. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Recessed mounting
Supply
Centralised power supply systems
Recognition distance
22 m
Monitoring
Central power supply (ML)
Pictograph
Set
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
single luminaire switching
Housing color
Anthracite
Input voltageAC
230 V
Protection type (IP)
IP40
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
216 V
Certification
WEEE, CE
Power max.
3,5 W
Power DS
3,5 W
Power BS
1,1 W
Ambient temperature DS
-20 °C to 40 °C
Ambient temperature BS
-20 °C to 40 °C

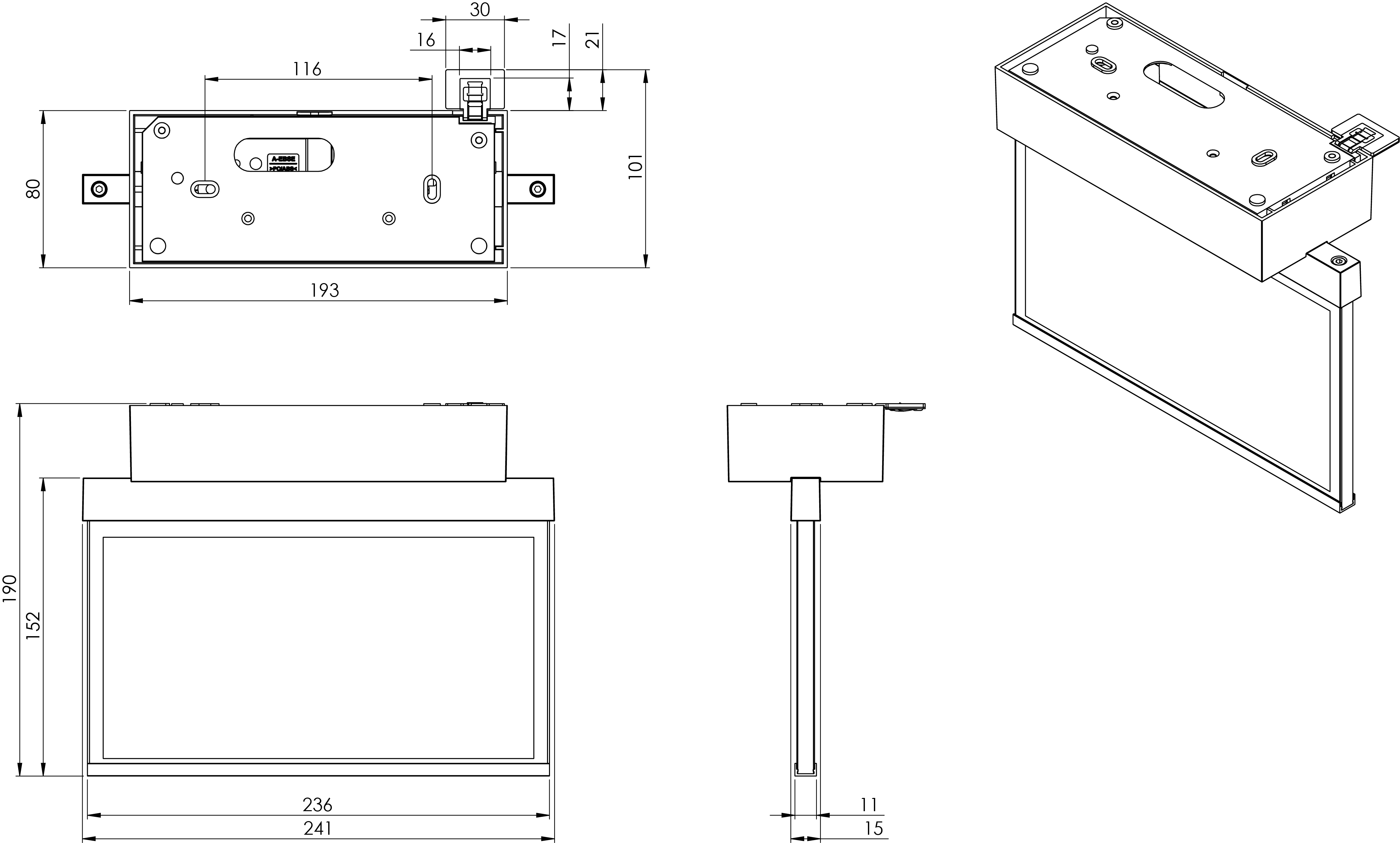

Depth
80 mm
Width
236 mm
Height
184 mm
Weight
1.11
Weight incl. packaging
1.47
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Customs tariff number
94056180
EAN
4260581714123
Luminaire type
Exit sign
Mounting
Recessed mounting
Recognition distance
22 m
Pictograph
Set
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
2
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
3,5 W
Power DS
3,5 W
Power BS
1,1 W
Ambient temperature DS
-20 °C to 40 °C
Ambient temperature BS
-20 °C to 40 °C
Depth
80 mm
Width
236 mm
Height
184 mm
Weight
1.11
Weight incl. packaging
1.47
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Customs tariff number
94056180
EAN
4260581714123

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
