AGCC009-E

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Modern zinc die-cast emergency exit sign luminaire with wire suspension for recessed mounting in the ceiling. Escape and emergency routes can be identified on either one or two sides.

It is part of the A series luminaire family, which provides solutions for any mounting and has won the German Design Award for its uniform, straight-line design.

Two requested pictograms (arrow to the right, left, up, down or white) are supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Rope ceiling installation
Supply
Centralised power supply systems
Recognition distance
50m
Monitoring
Without monitoring
Pictograph
acc. to Specification
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
Permanent circuit
Housing color
Stainless steel
Input voltageAC
230 V
Protection type (IP)
IP20
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
100-254 V
Certification
WEEE, CE
Power max.
5,2 W
Power maintained
5,2 W
Power non-maintained
0 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

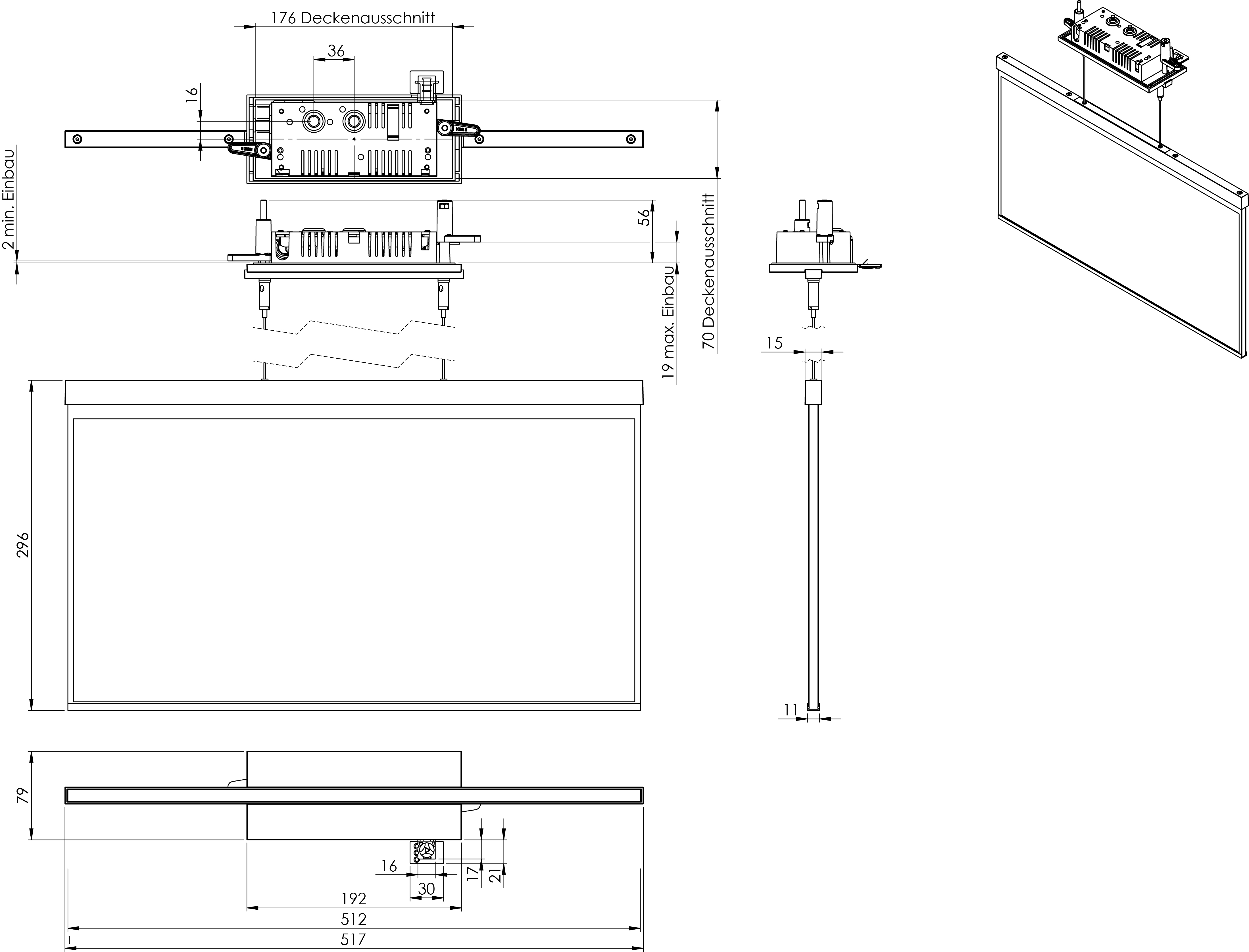

Depth
79 mm
Width
512 mm
Height
309 mm
Installation length
176 mm
Installation width
68 mm
Installation height
40 mm
Weight
2.44
Weight incl. packaging
3.09
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Customs tariff number
94056180
EAN
4260659565077
Luminaire type
Exit sign
Mounting
Rope ceiling installation
Recognition distance
50m
Pictograph
acc. to Specification
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Stainless steel
Protection type (IP)
IP20
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
2
Supply
Centralised power supply systems
Monitoring
Without monitoring
Bridging time
CPS
Battery
/
Operating mode
Permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
100-254 V
Power max.
5,2 W
Power maintained
5,2 W
Power non-maintained
0 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
79 mm
Width
512 mm
Height
309 mm
Installation length
176 mm
Installation width
68 mm
Installation height
40 mm
Weight
2.44
Weight incl. packaging
3.09
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Customs tariff number
94056180
EAN
4260659565077

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
