LED ceiling luminaire, ZOLA series, with direct and direct/indirect beam. Housing made from aluminium, white, powder-coated. Parabolic louvre diffuser, matt. Operating unit can be switched or dimmed (DALI dimmer), integrated. UGR < 16 and screen-compliant in accordance with EN 12464-1. Version with CASAMBI Bluetooth control available. DC compatible.
Product data

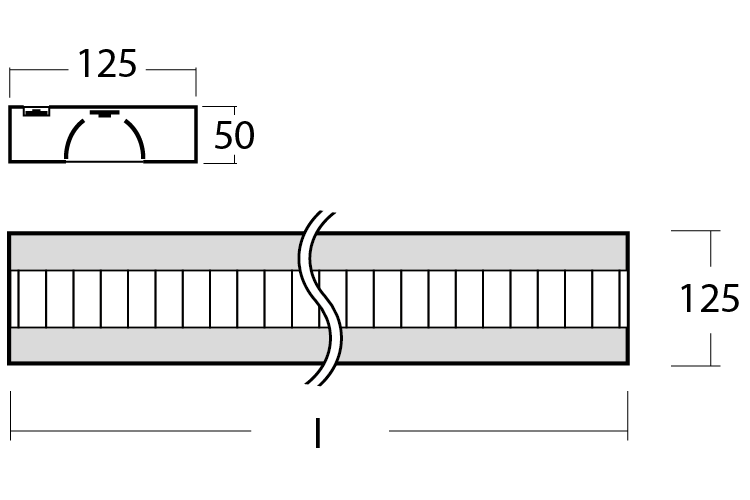

Product dimensions Length
1415 mm
Certification
CE
Product dimensions Width
50 mm
Insulation class
1
Product dimensions Height
125 mm
Protection type (IP)
IP20
Product weight
3.7 kg
Glow wire test
650 °C
Packaging dimensions Length
1550 mm
Connection cross-section
1.5 mm²
Packaging dimensions Width
130 mm
System performance
63 W
Packaging dimensions Height
60 mm
Input voltage AC
220-240V / 50-60Hz V
Weight incl. packaging
3.9 kg
Starting current
41 A
Color
White
Power factor
0.95 PF
Housing material
Aluminium
Number of power supply units on LS B10A
16 pcs.
Number of power supply units on LS B16A
26 pcs.
Number of power supply units at LS C10A
26 pcs.
Number of power supply units at LS C16A
43 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
7250 lm
Colour rendering index
> 80 Ra
Colour tolerance
2

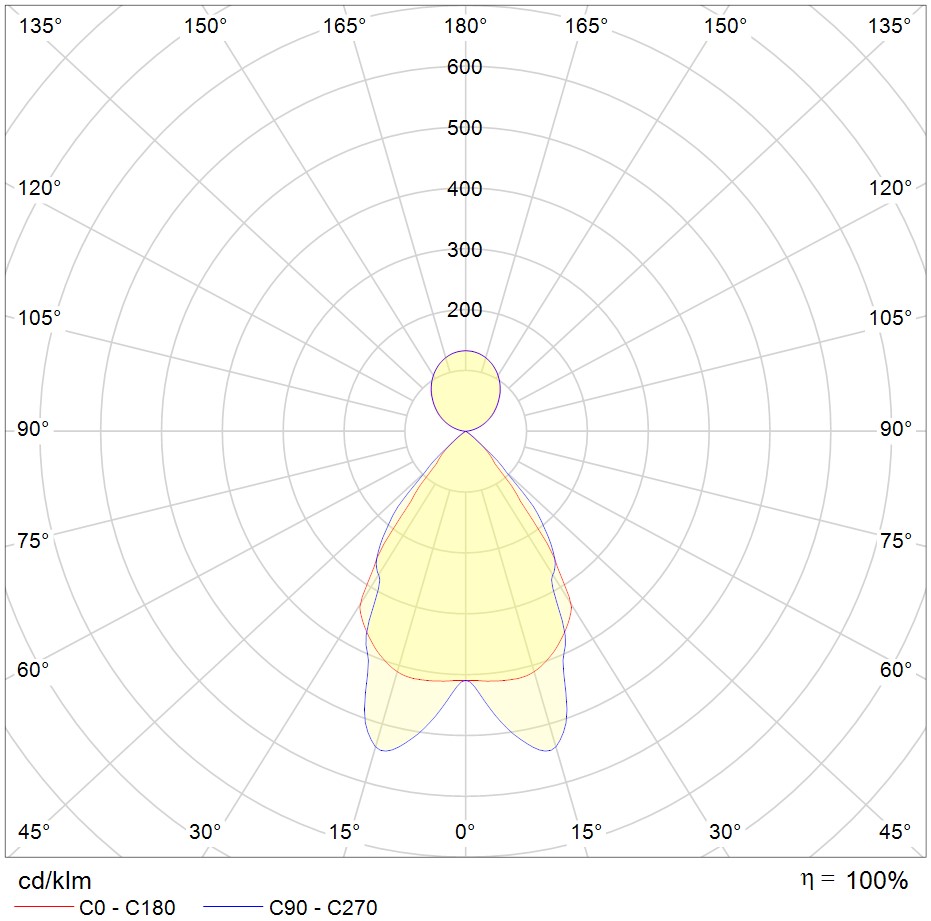

Beam angle
72,8/64,8 °
Color temperature
3000 K
Light color
830
UGR
12
Service life
50000 h, L80
Light yield
115 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Pendulum
