LED ceiling- and wall-mounted luminaire, MAVS. Housing made from aluminium, white, powder-coated. Diffuser made from plastic (PMMA), opal, UV-stabilised. Operating unit can be switched or dimmed (DALI dimmer), integrated. Version with
CASAMBI® Bluetooth control available. DC compatible.
Product data

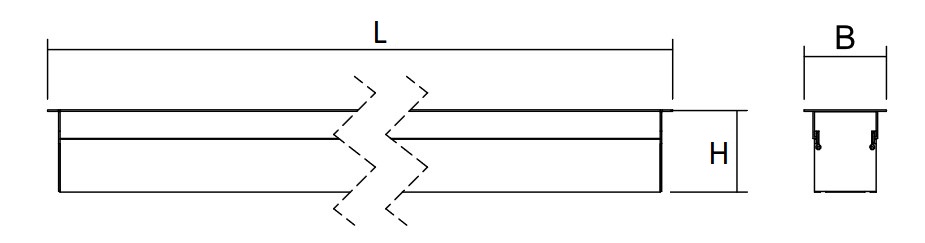

Product dimensions Length
1425 mm
Housing material
Aluminium
Product dimensions Width
79 mm
Certification
CE
Product dimensions Height
79 mm
Insulation class
1
Product weight
3.5 kg
Protection type (IP)
IP40
Packaging dimensions Length
1600 mm
Connection cross-section
2.5 mm²
Packaging dimensions Width
119 mm
System performance
44 W
Packaging dimensions Height
74 mm
Input voltage AC
220-240V / 50-60Hz V
Weight incl. packaging
4 kg
Starting current
35 A
Installation depth
150 mm
Power factor
0.9 PF
Color
Silver
Starting time
240 µs
Number of power supply units at LS C16A
26 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
4350 lm
Colour rendering index
> 80 Ra
Colour tolerance
3

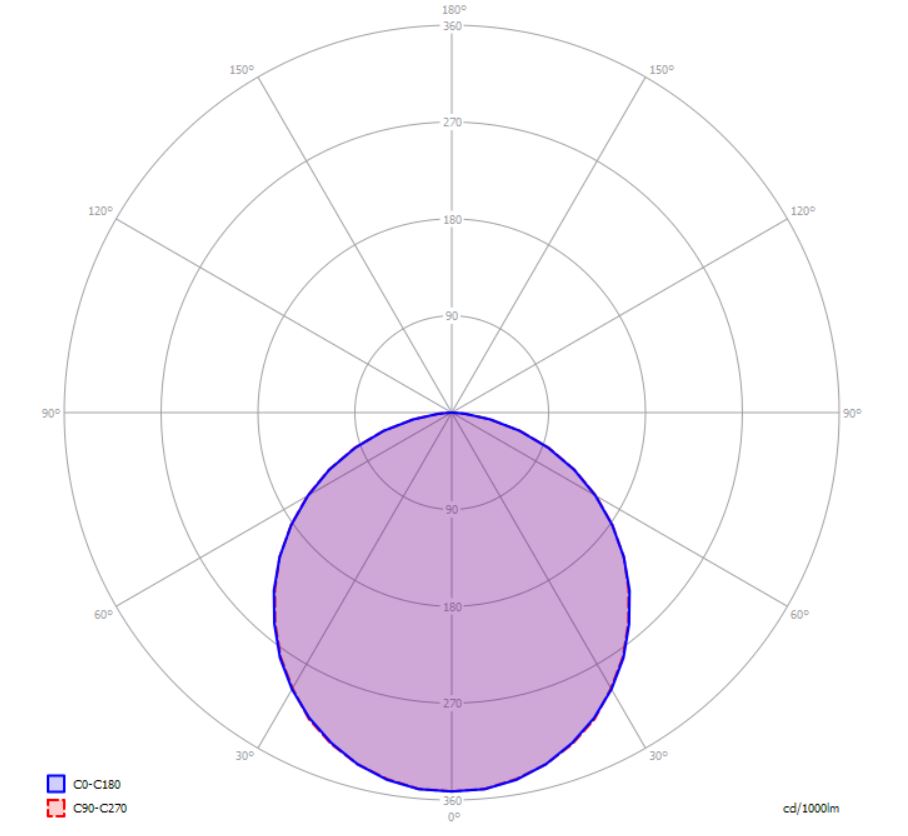

Beam angle
60 °
Color temperature
3000 K
Light color
830
UGR
26.2
Service life
75000 h, L80
Light yield
99 lm/w
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
+30 °C
Mounting
Ceiling mounting
