LED ceiling- and wall-mounted luminaire, MAVS. Housing made from aluminium, white, powder-coated. Diffuser made from plastic (PMMA), opal, UV-stabilised. Operating unit can be switched or dimmed (DALI dimmer), integrated. Version with
CASAMBI® Bluetooth control available. DC compatible.
Product data

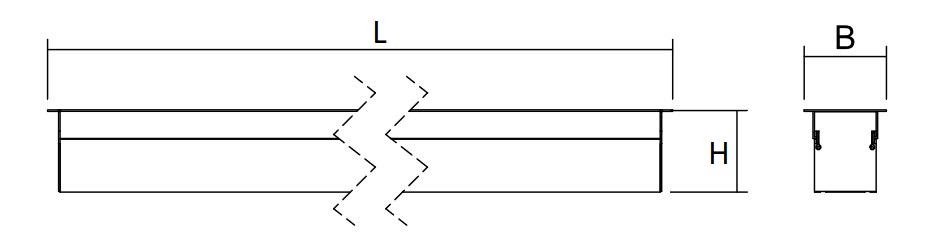

Product dimensions Length
865 mm
Housing material
Aluminium
Product dimensions Width
79 mm
Certification
CE
Product dimensions Height
79 mm
Insulation class
1
Product weight
2.3 kg
Protection type (IP)
IP40
Packaging dimensions Length
1300 mm
Connection cross-section
2.5 mm²
Packaging dimensions Width
118 mm
System performance
26 W
Packaging dimensions Height
75 mm
Input voltage AC
220-240V / 50-60Hz V
Weight incl. packaging
2.6 kg
Starting current
29 A
Installation depth
150 mm
Power factor
0.9 PF
Color
Silver
Starting time
143 µs
Number of power supply units at LS C16A
42 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
2600 lm
Colour rendering index
> 80 Ra
Colour tolerance
3

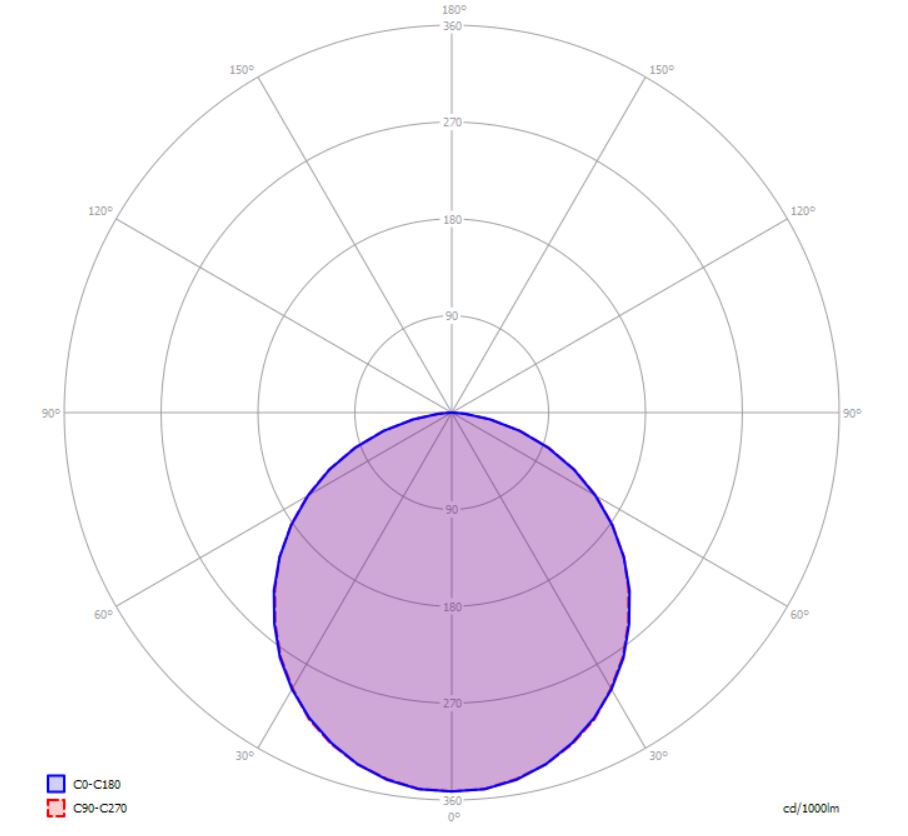

Beam angle
60 °
Color temperature
3000 K
Light color
830
UGR
26.2
Service life
75000 h, L80
Light yield
100 lm/w
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
+30 °C
Mounting
Ceiling mounting
Product dimensions Length
865 mm
Product dimensions Width
79 mm
Product dimensions Height
79 mm
Product weight
2.3 kg
Packaging dimensions Length
1300 mm
Packaging dimensions Width
118 mm
Packaging dimensions Height
75 mm
Weight incl. packaging
2.6 kg
Installation depth
150 mm
Color
Silver
Housing material
Aluminium
Certification
CE
Insulation class
1
Protection type (IP)
IP40
Connection cross-section
2.5 mm²
System performance
26 W
Input voltage AC
220-240V / 50-60Hz V
Starting current
29 A
Power factor
0.9 PF
Starting time
143 µs
Number of power supply units at LS C16A
42 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
2600 lm
Colour rendering index
> 80 Ra
Colour tolerance
3
Beam angle
60 °
Color temperature
3000 K
Light color
830
UGR
26.2
Service life
75000 h, L80
Light yield
100 lm/w
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
+30 °C
Mounting
Ceiling mounting
