LED recessed luminaire, frame panel, EDGE series, for 625 mm ceiling module. Flat shape. Aluminium frame, white, powder-coated. Diffuser made from plastic (PMMA), opal, non-yellowing. Power supply, DALI dimmable, Driver external. Version with CASAMBI® Bluetooth control, RGBW and tunable white available.
Product data
Product dimensions Length
615 mm
Certification
CE, RoHS
Product dimensions Width
615 mm
Insulation class
2
Product dimensions Height
15 mm
Protection type (IP)
IP20
Product weight
0.46 kg
Protection type (IP)
IP40
Packaging dimensions Length
640 mm
Type of dimming
DALI
Packaging dimensions Width
635 mm
System performance
40 W
Packaging dimensions Height
30 mm
Input voltage AC
220-240V / 50-60Hz V
Weight incl. packaging
0.56 kg
Power factor
90 PF
Color
White
DC suitability
Yes
Housing material
Aluminium
Electrical design
Dimmable, with external control gear
Light source
LED
Rated luminous flux
2600 lm
Colour rendering index
> 80 Ra

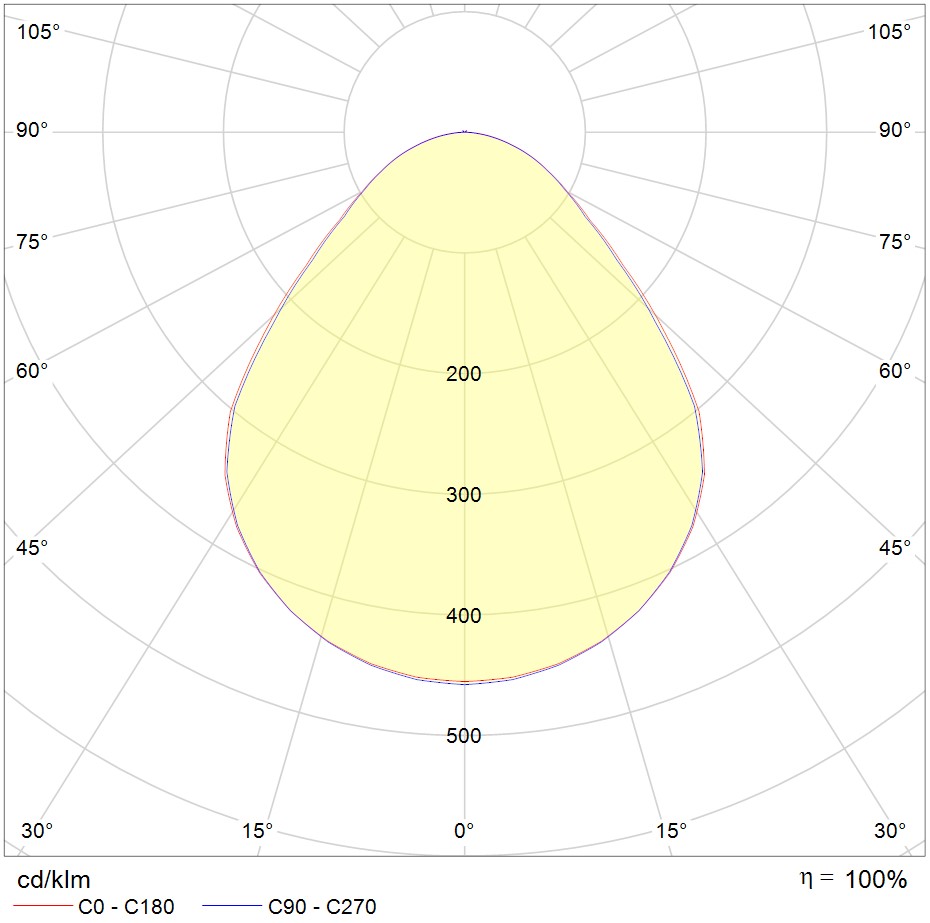

Beam angle
92/90 °
Color temperature
4000 K
Light color
840
UGR
16.6
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
+40 °C
Mounting
Ceiling mounting
Product dimensions Length
615 mm
Product dimensions Width
615 mm
Product dimensions Height
15 mm
Product weight
0.46 kg
Packaging dimensions Length
640 mm
Packaging dimensions Width
635 mm
Packaging dimensions Height
30 mm
Weight incl. packaging
0.56 kg
Color
White
Housing material
Aluminium
Certification
CE, RoHS
Insulation class
2
Protection type (IP)
IP20
Protection type (IP)
IP40
Type of dimming
DALI
System performance
40 W
Input voltage AC
220-240V / 50-60Hz V
Power factor
90 PF
DC suitability
Yes
Electrical design
Dimmable, with external control gear
Light source
LED
Rated luminous flux
2600 lm
Colour rendering index
> 80 Ra
Beam angle
92/90 °
Color temperature
4000 K
Light color
840
UGR
16.6
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
+40 °C
Mounting
Ceiling mounting
