WER029-E

Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

LED emergency luminaire for wall installation and for the lighting of escape and rescue routes according to DIN EN 60598-1, DIN EN 605982-22 and DIN EN 1838. This recessed luminaire is designed for installation in conventional jacks. The mounting frame can be aligned with the jack. The zinc-aluminum cover is locked without externally visible fastening. Through the status LED wich is incorporated in the lens the harmony of the housing is not interrupted.


Product data

Luminaire type
Safety luminaire
Supply
Centralised power supply systems
Mounting
Recessed wall mounting
Monitoring
Without monitoring
Pictograph
No
Bridging time
CPS
Illuminant
LED
Operating mode
Permanent circuit
Housing material
Zinc die-cast
Input voltageAC
230 V
Housing color
Stainless steel
Input frequency
50 / 60 Hz
Protection type (IP)
IP20
Input voltage DC
100-254 V
Impact resistance (IK)
≥ 3
Power max.
1,9 W
Certification
WEEE, CE
Power DS
1,9 W
Insulation class
2
Power BS
0 W
Ambient temperature DS
-20 °C - 40 °C
Ambient temperature BS
-20 °C - 40 °C

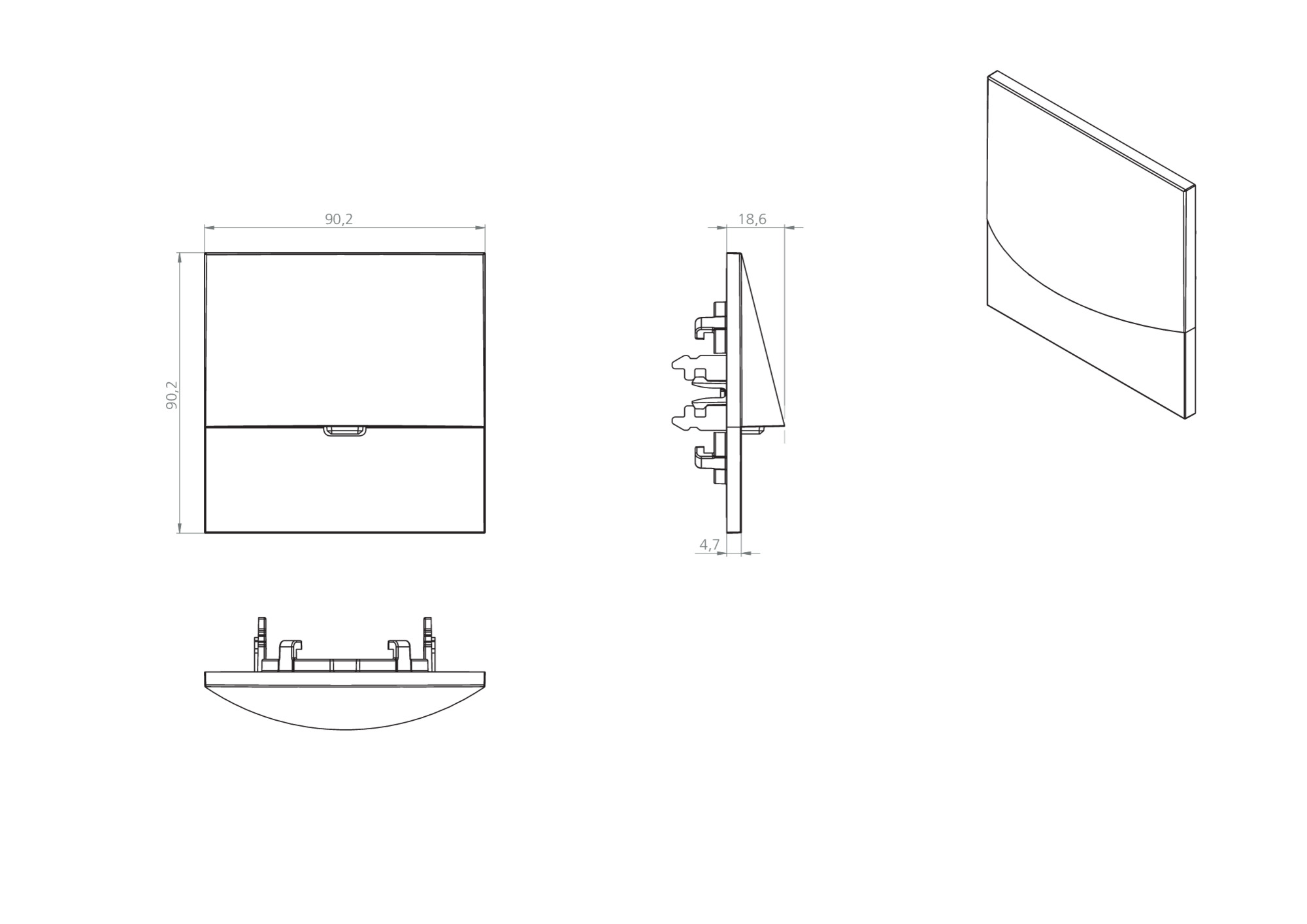

Depth
20 mm
Width
90 mm
Height
90 mm
Installation dimensions Diameter
68 mm
Weight
0.3
Weight incl. packaging
0.33
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
140 lm
Luminous flux emergency
140 lm
Customs tariff number
94056180
EAN
4260682147363
Luminaire type
Safety luminaire
Mounting
Recessed wall mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Stainless steel
Protection type (IP)
IP20
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
2
Supply
Centralised power supply systems
Monitoring
Without monitoring
Bridging time
CPS
Operating mode
Permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
100-254 V
Power max.
1,9 W
Power DS
1,9 W
Power BS
0 W
Ambient temperature DS
-20 °C - 40 °C
Ambient temperature BS
-20 °C - 40 °C
Depth
20 mm
Width
90 mm
Height
90 mm
Installation dimensions Diameter
68 mm
Weight
0.3
Weight incl. packaging
0.33
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
140 lm
Luminous flux emergency
140 lm
Customs tariff number
94056180
EAN
4260682147363

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
