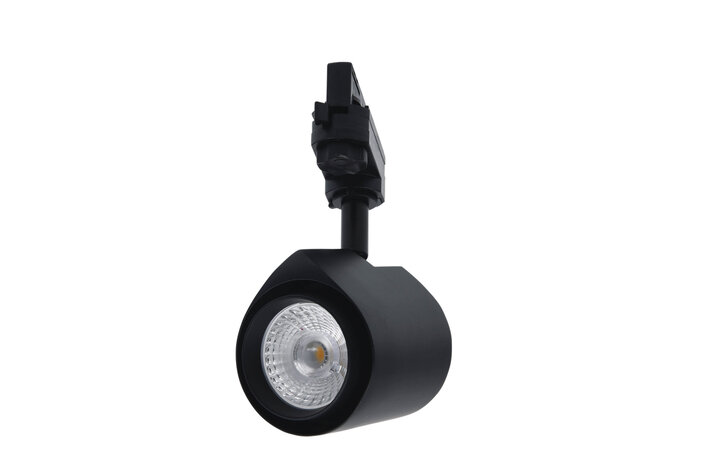

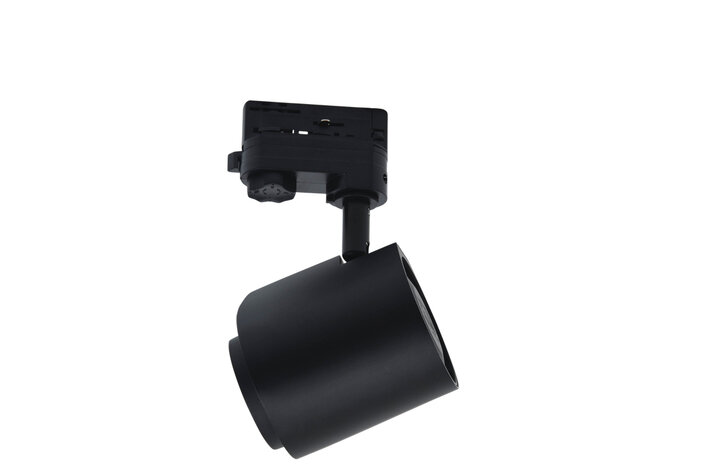

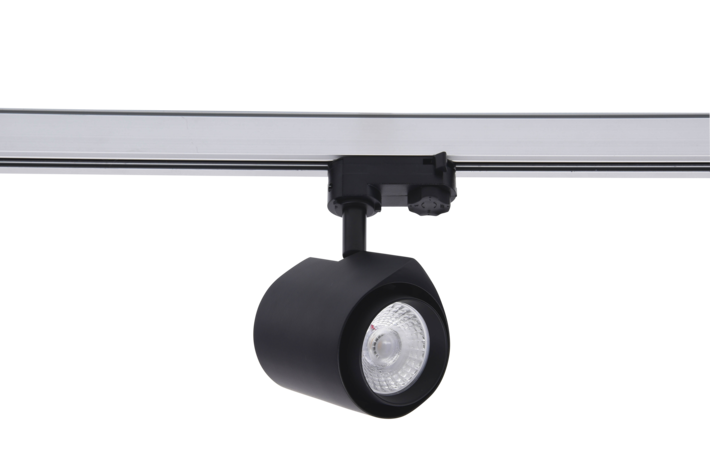

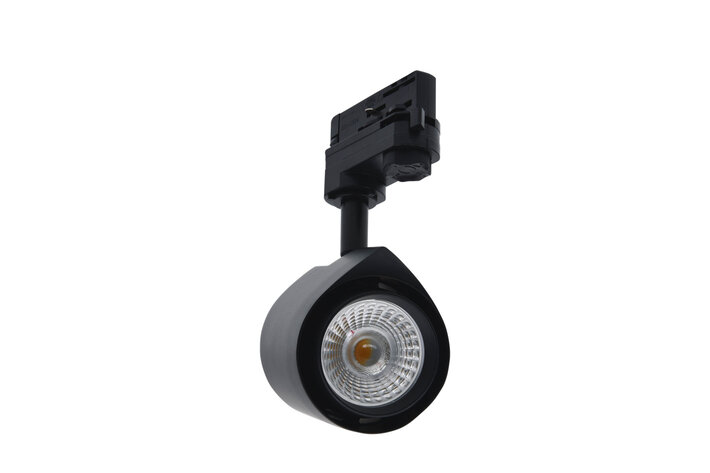

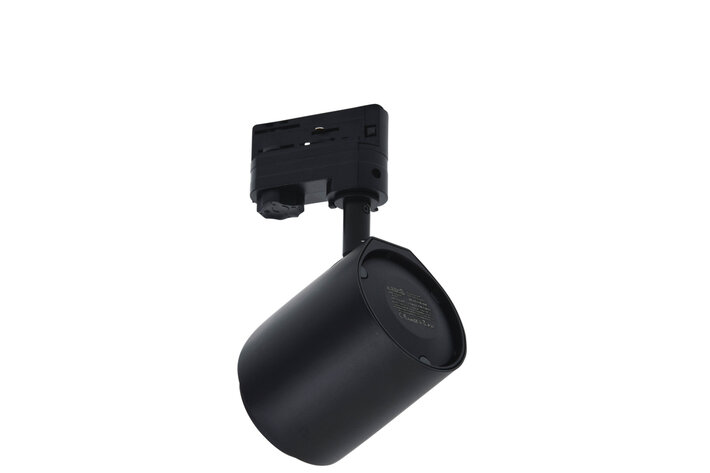

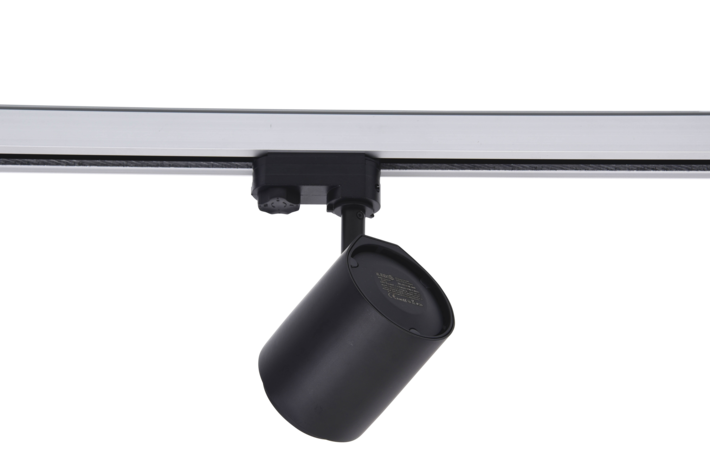

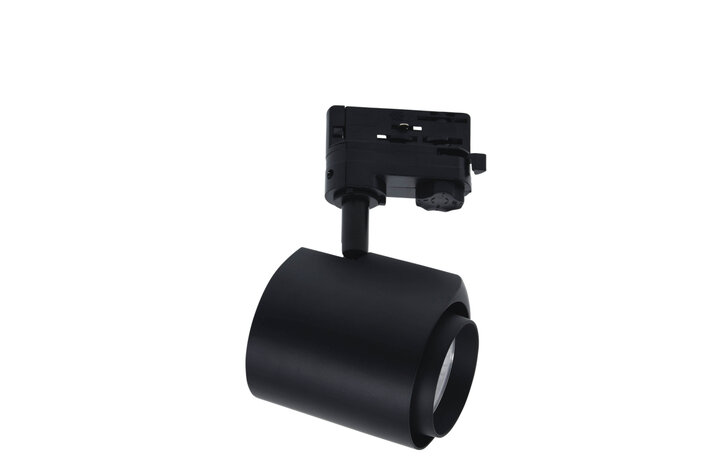

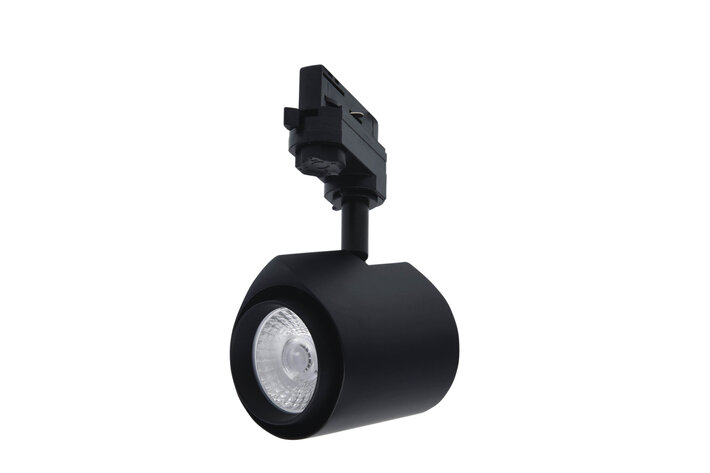

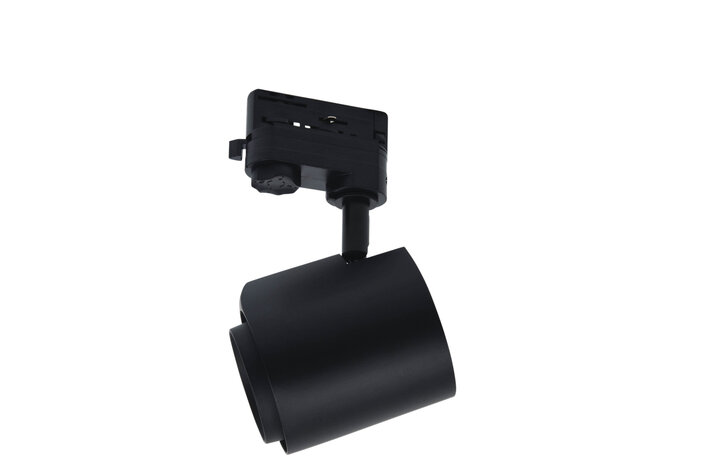

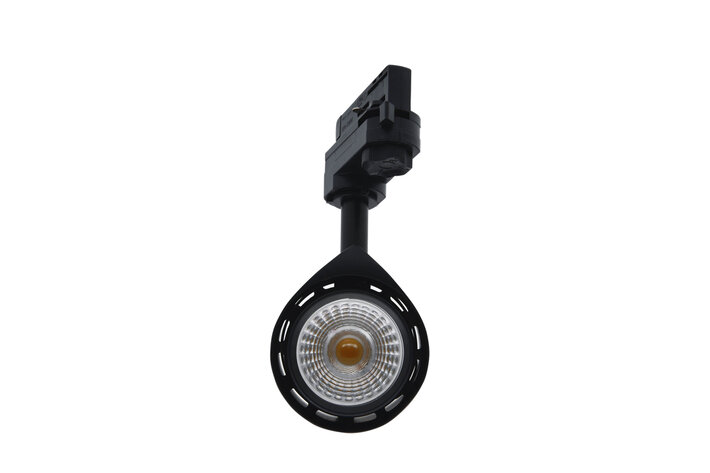

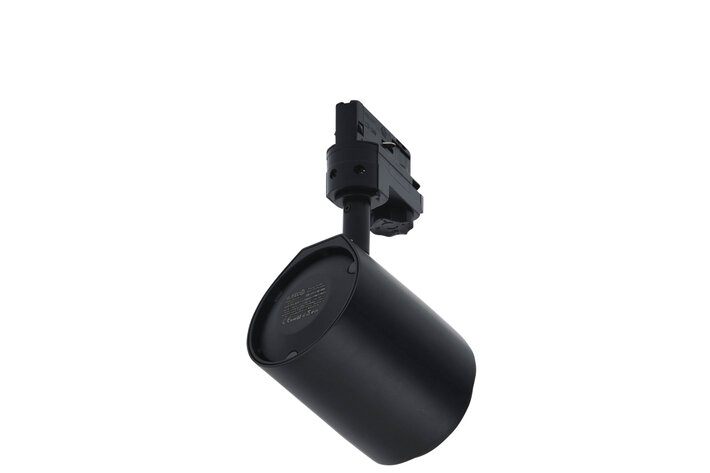

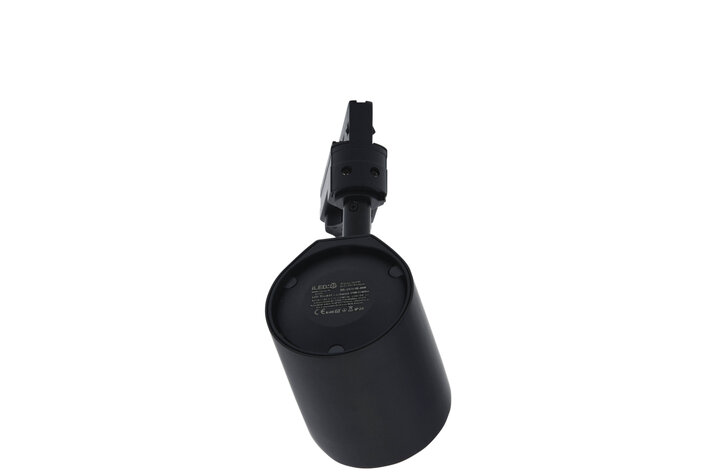

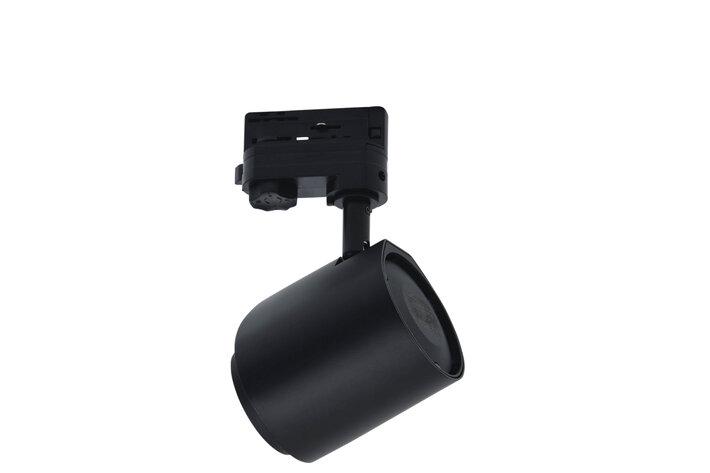

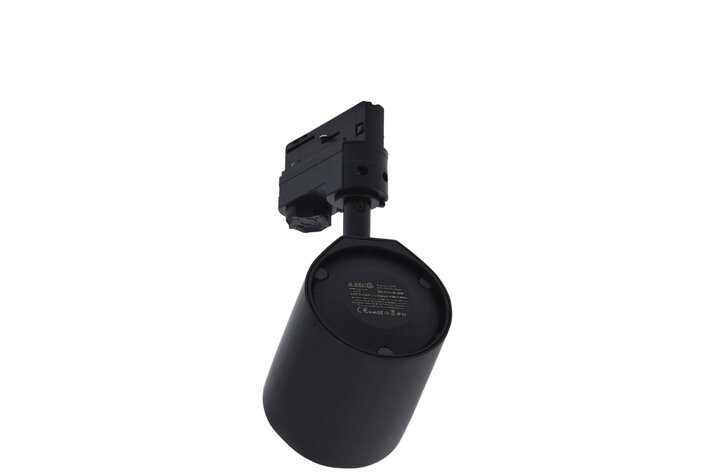

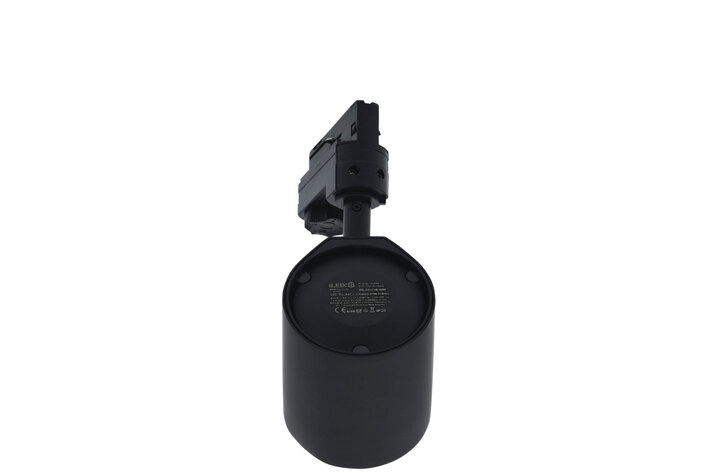

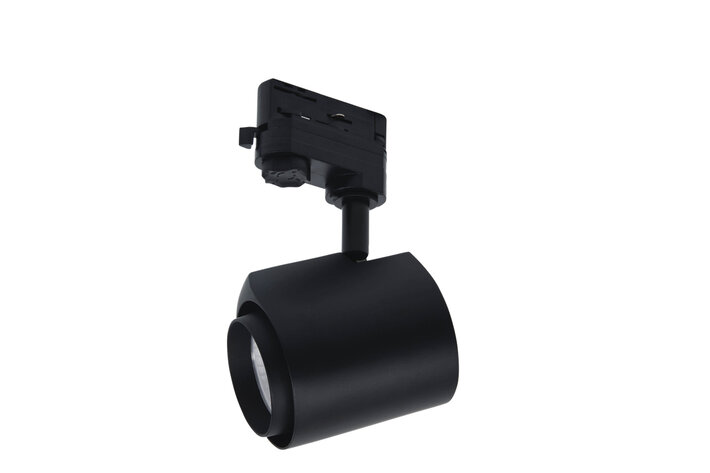

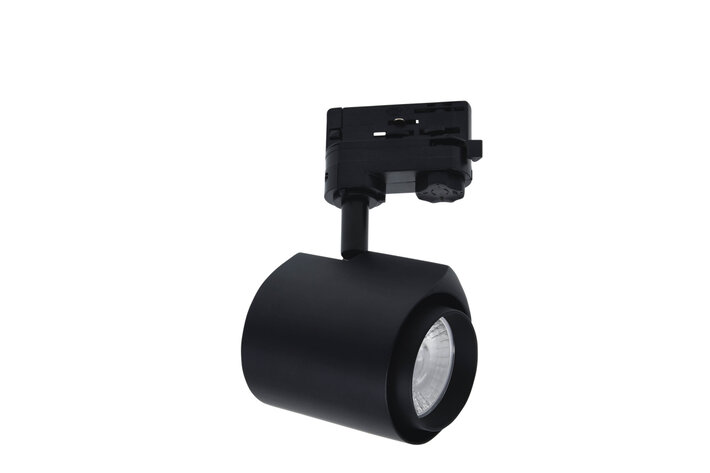

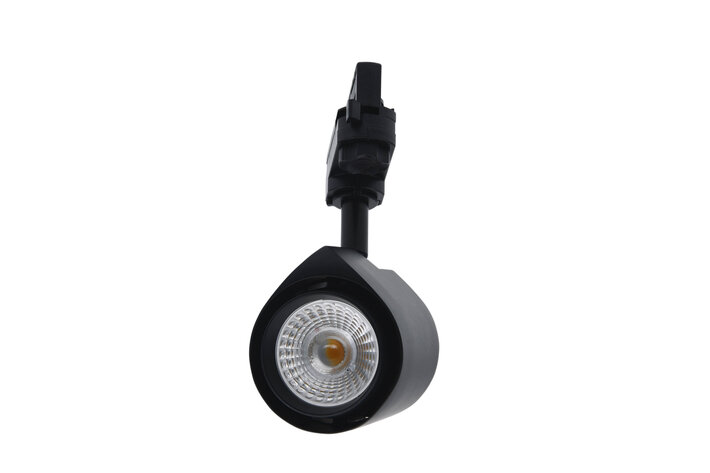

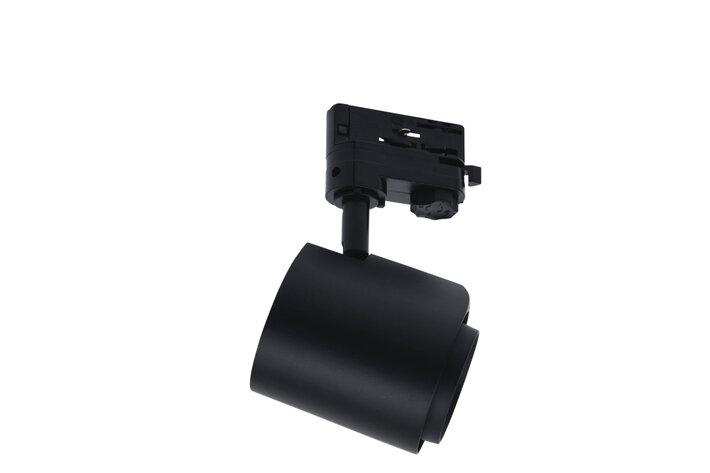

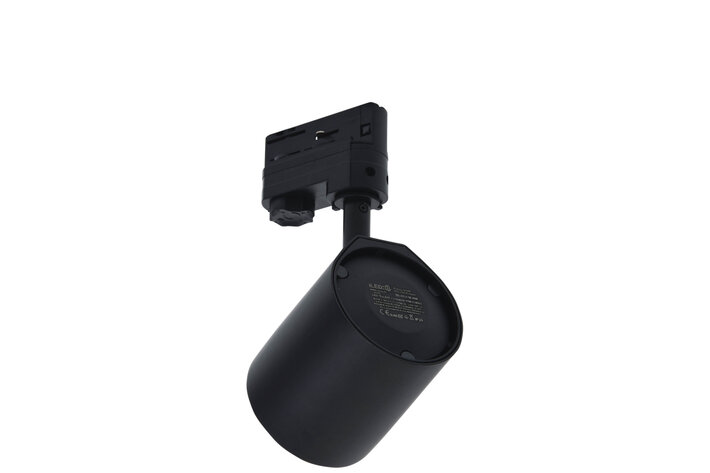

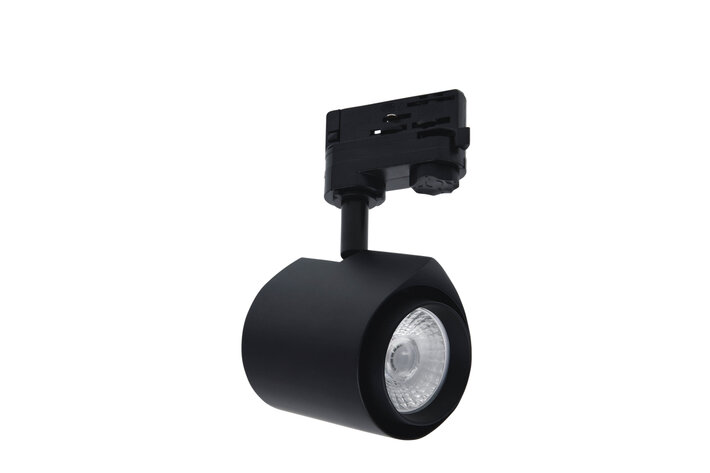

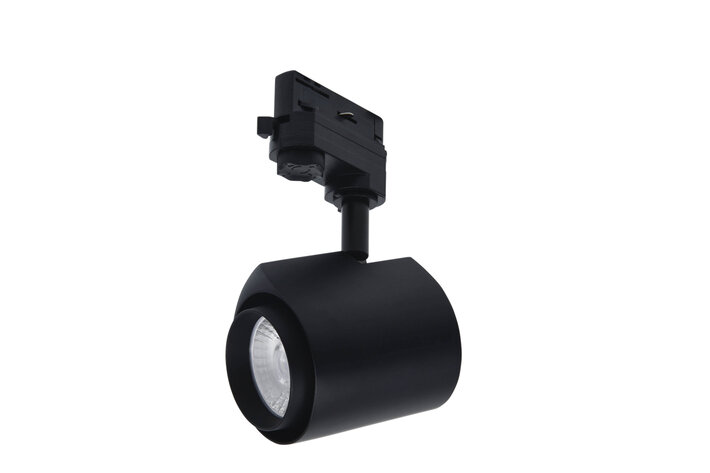

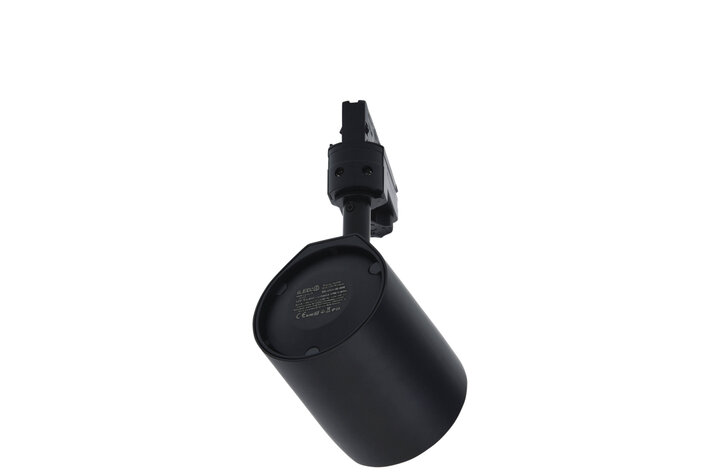

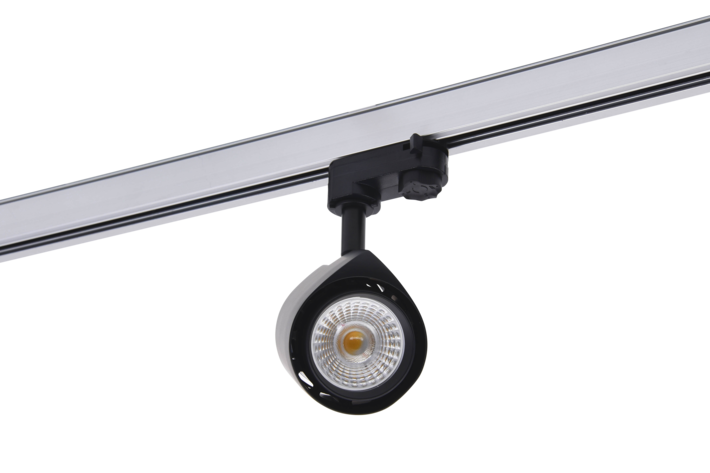

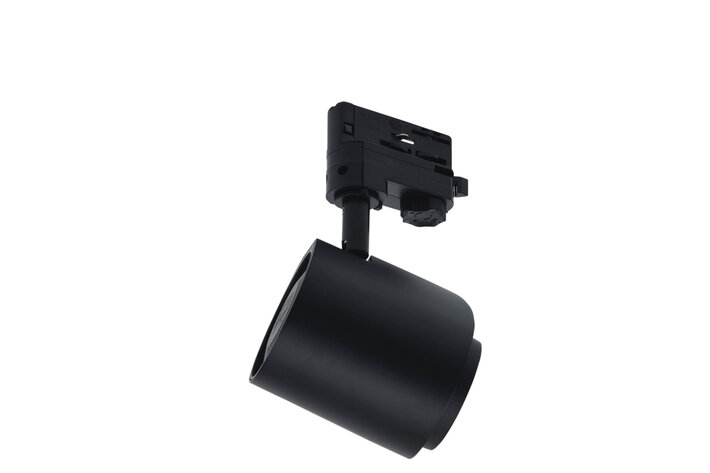

LED track luminaires, Track series, with multi-adapter for 3-phase busbars, 230V. Housing made from die-cast aluminium, white or anthracite, powder-coated. Can be rotated 350° horizontally and swivelled 90° vertically. Interchangeable PC lenses, non-yellowing, for various beam angles (20° - 60°). Operating unit can be switched or dimmed (DALI dimmer), installed.
Product data

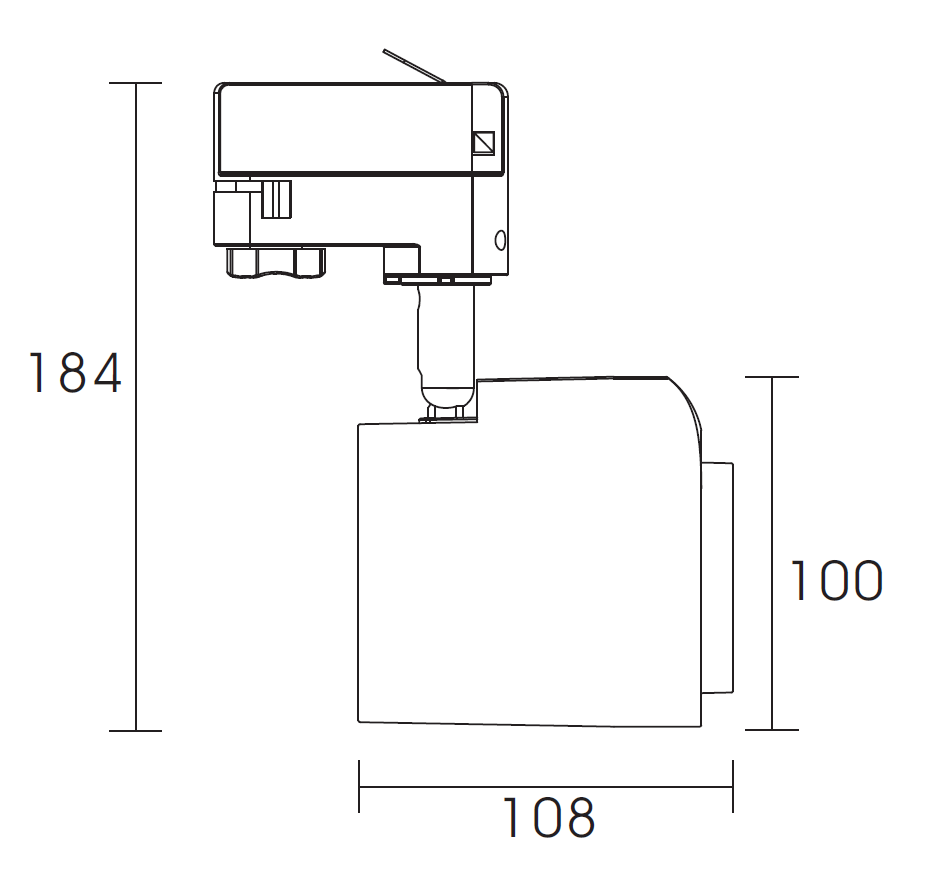

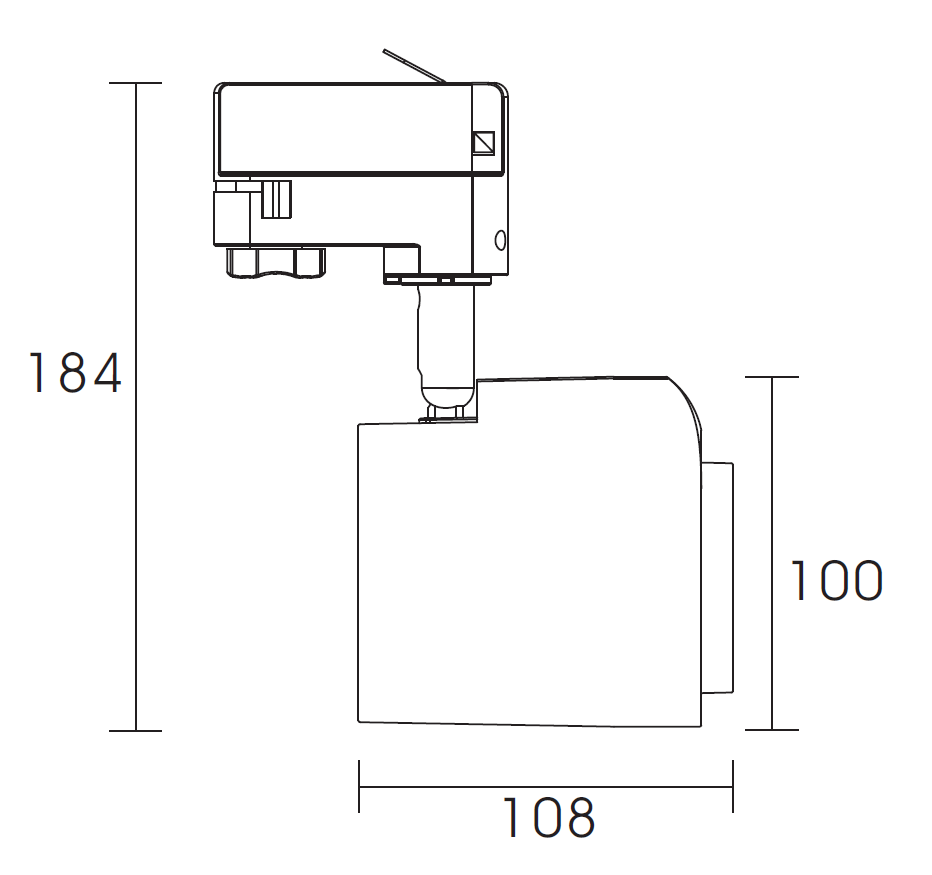

Product dimensions Length
184 mm
Certification
CE, RoHS
Product dimensions Width
150 mm
Protection type (IP)
IP20
Product dimensions Height
85 mm
Glow wire test
650 °C
Product weight
0.65 kg
Type of dimming
DALI
Packaging dimensions Length
208 mm
System performance
15 W
Packaging dimensions Width
140 mm
Input voltage AC
220-240V / 50-60Hz V
Packaging dimensions Height
110 mm
Starting current
0.98 A
Weight incl. packaging
0.67 kg
Power factor
0.9 PF
Color
White
Number of power supply units on LS B10A
68 pcs.
Housing material
Aluminium
Number of power supply units on LS B16A
108 pcs.
Number of power supply units at LS C10A
90 pcs.
Number of power supply units at LS C16A
144 pcs.
Electrical design
with internal control gear, Dimmable
Light source
LED
Rated luminous flux
1600 lm
Colour rendering index
> 80 Ra
Colour tolerance
4

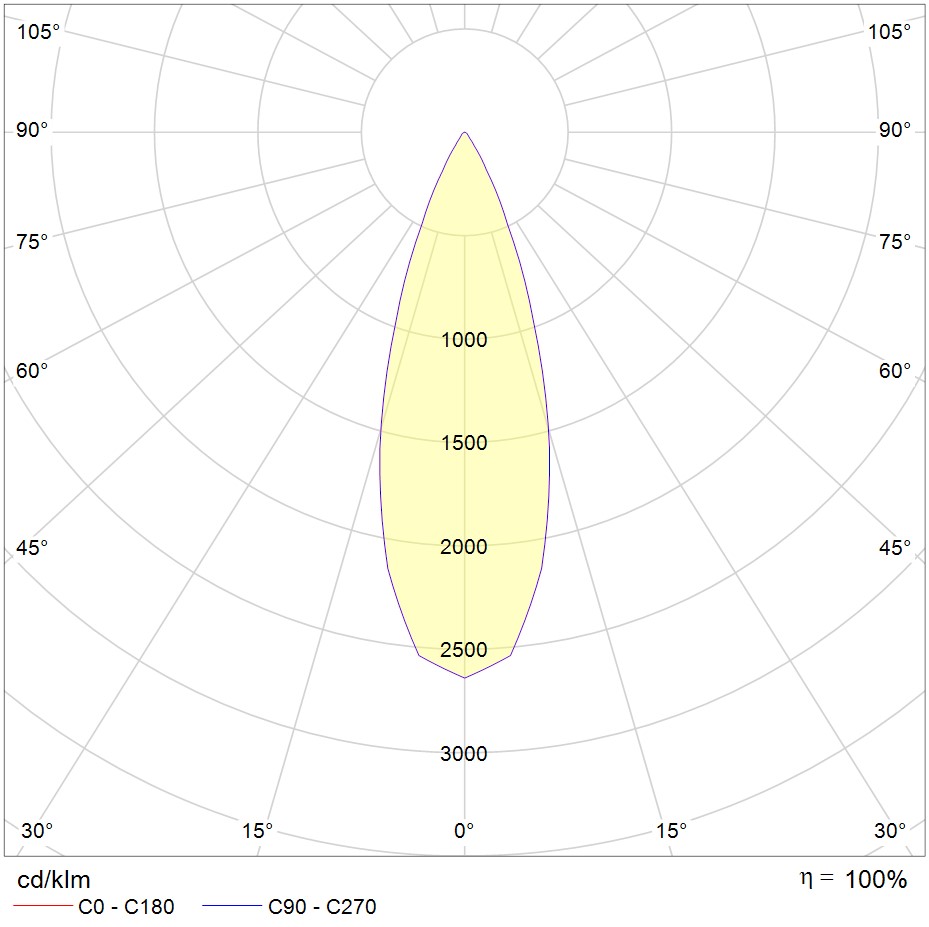

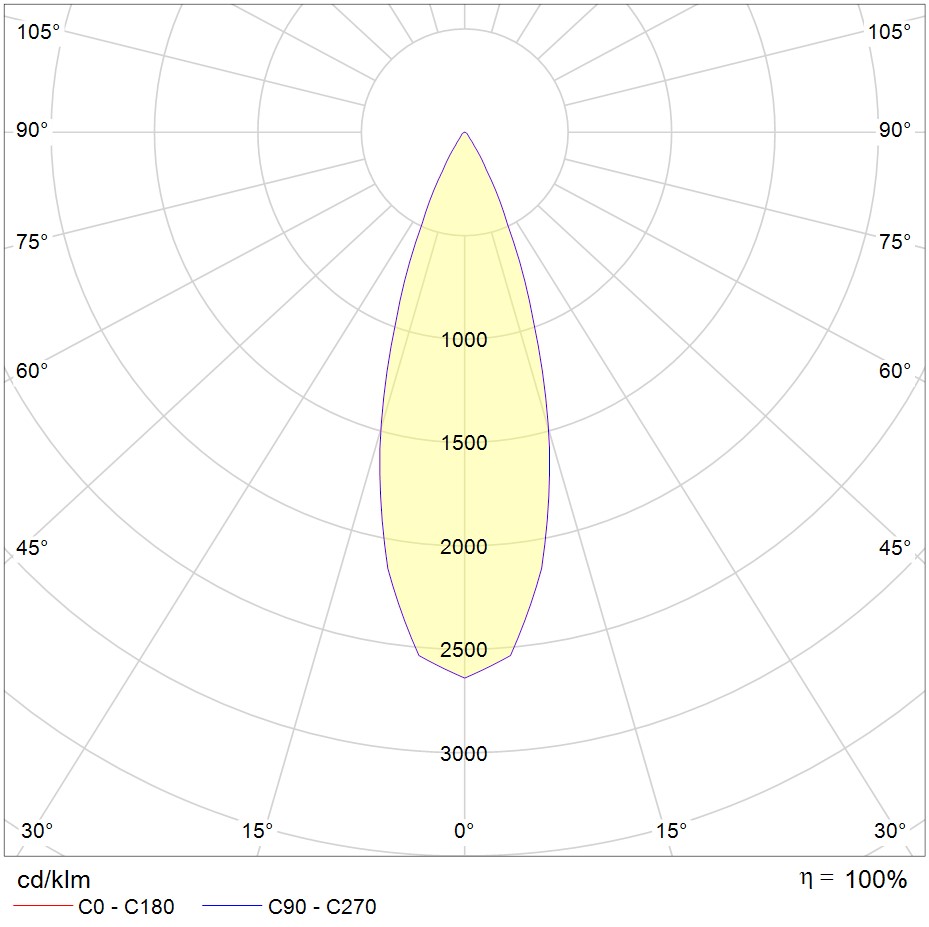

Beam angle
33 °
Color temperature
4000 K
Light color
840
UGR
16.7
Service life
50000 h, L70
Light yield
107 lm/w
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
40 °C
