LMD413SC

Exit sign
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Emergency luminaire in a sleek Aluminium profile, matt andonized for ceiling mounting with an additional light source to light the Floor below the luminaire. Housing is openable toollessly. Applicable for maintained or non-maintained operation. The toolless Change and variable use of these pictograms provide planning security on site. Pluggable set of pictograms (left, right, down, up) is included in the scope of delivery. Emergency luminaire according to DIN EN 60598-1, DIN EN 60598-2-22 und DIN EN 1838.

Automatic monitoring of the emergency light with SelfControl.


Product data

Luminaire type
Exit sign
Insulation class
1
Mounting
Ceiling
Monitoring
SelfControl (SC)
Recognition distance
22 m
Bridging time
3 h
Pictograph
Set
Battery
LFP3212.K-SET-2AKKU
Illuminant
LED
Power max.
4,3 W
Housing material
Aluminium
Power DS
3,5 W
Housing color
Anodised aluminium
Power BS
0,9 W
Protection type (IP)
IP40
Ambient temperature DS
-5 °C - 40 °C
Impact resistance (IK)
3
Ambient temperature BS
-5 °C - 40 °C
Certification
WEEE, CE

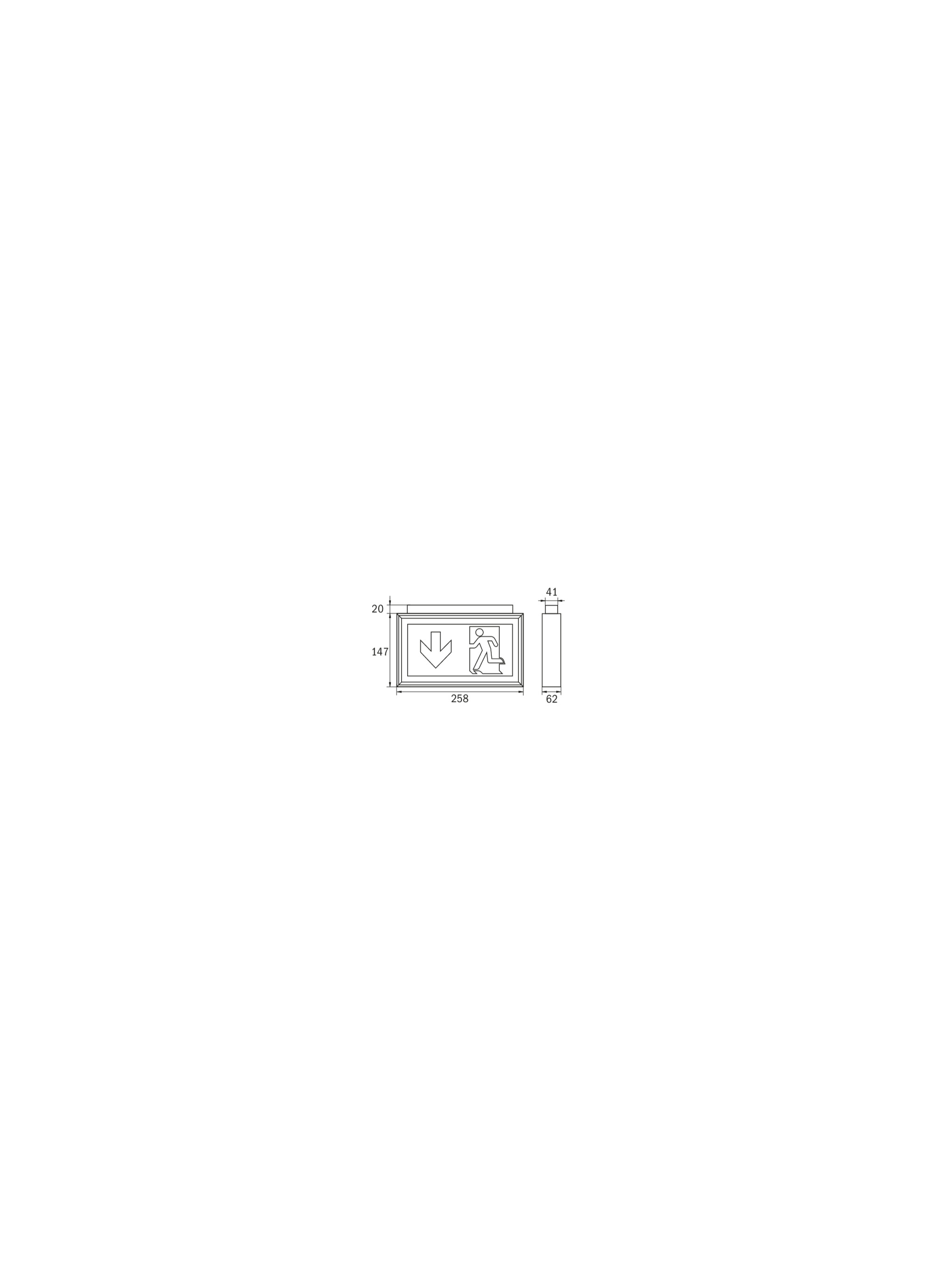

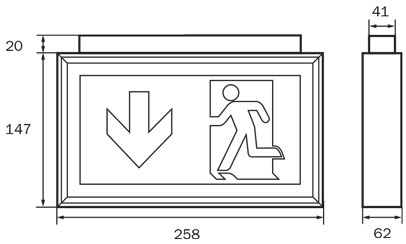

Depth
62 mm
Width
258 mm
Height
147 mm
Weight
0.95
Weight incl. packaging
1.05
Customs tariff number
94056180
EAN
4260766556425
Luminaire type
Exit sign
Mounting
Ceiling
Recognition distance
22 m
Pictograph
Set
Illuminant
LED
Housing material
Aluminium
Housing color
Anodised aluminium
Protection type (IP)
IP40
Impact resistance (IK)
3
Certification
WEEE, CE
Insulation class
1
Monitoring
SelfControl (SC)
Bridging time
3 h
Battery
LFP3212.K-SET-2AKKU
Power max.
4,3 W
Power DS
3,5 W
Power BS
0,9 W
Ambient temperature DS
-5 °C - 40 °C
Ambient temperature BS
-5 °C - 40 °C
Depth
62 mm
Width
258 mm
Height
147 mm
Weight
0.95
Weight incl. packaging
1.05
Customs tariff number
94056180
EAN
4260766556425

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
