ILDL029ML-SW

Safety luminaire Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

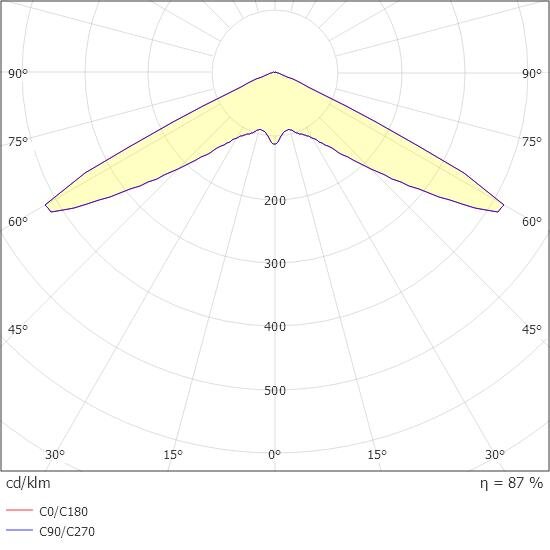

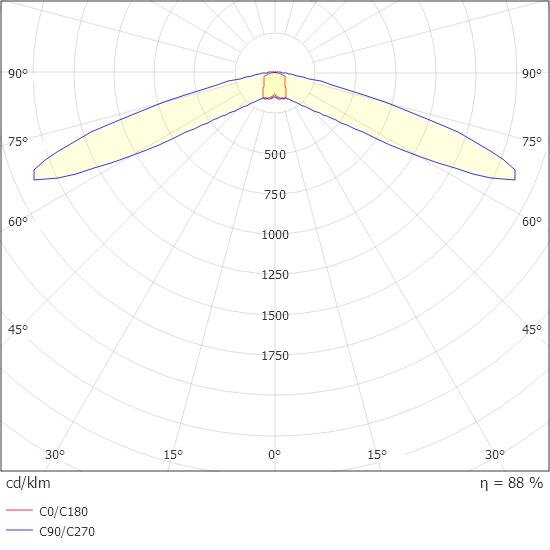

The IL LED safety light with its unobtrusive design is a real all-rounder. It is ready for almost all requirements and always offers the right solution. The innovative integrated lens carrier with quick-mounting device enables the flexible use of different lens types depending on the application. Round and corridor lenses are already included in the scope of delivery for each light and enable perfect adaptation to the respective installation situation. All versions of the IL are available for surface and recessed mounting.

The IL surface-mounted light consists of only 2 parts, with the ceiling attachment containing the mains connection terminals. The actual lamp is installed without tools and is not connected to the mains voltage when it is dismantled.

Control and monitoring via central power supply system.


Product data

Luminaire type
Safety luminaire
Supply
Centralised power supply systems
Mounting
Ceiling
Monitoring
Central power supply (ML)
Pictograph
No
Bridging time
CPS
Illuminant
LED
Operating mode
single luminaire switching
Housing material
Plastic
Input voltageAC
230 V
Housing color
Black
Input frequency
50 / 60 Hz
Protection type (IP)
IP40
Input voltage DC
216 V
Impact resistance (IK)
≥ 3
Power max.
4,6 W
Certification
WEEE, CE, TÜV Rheinland Type approved, ENEC
Power DS
4,6 W
Insulation class
2
Power BS
1,2 W
Ambient temperature DS
-20 °C - 30 °C
Ambient temperature BS
-20 °C - 40 °C

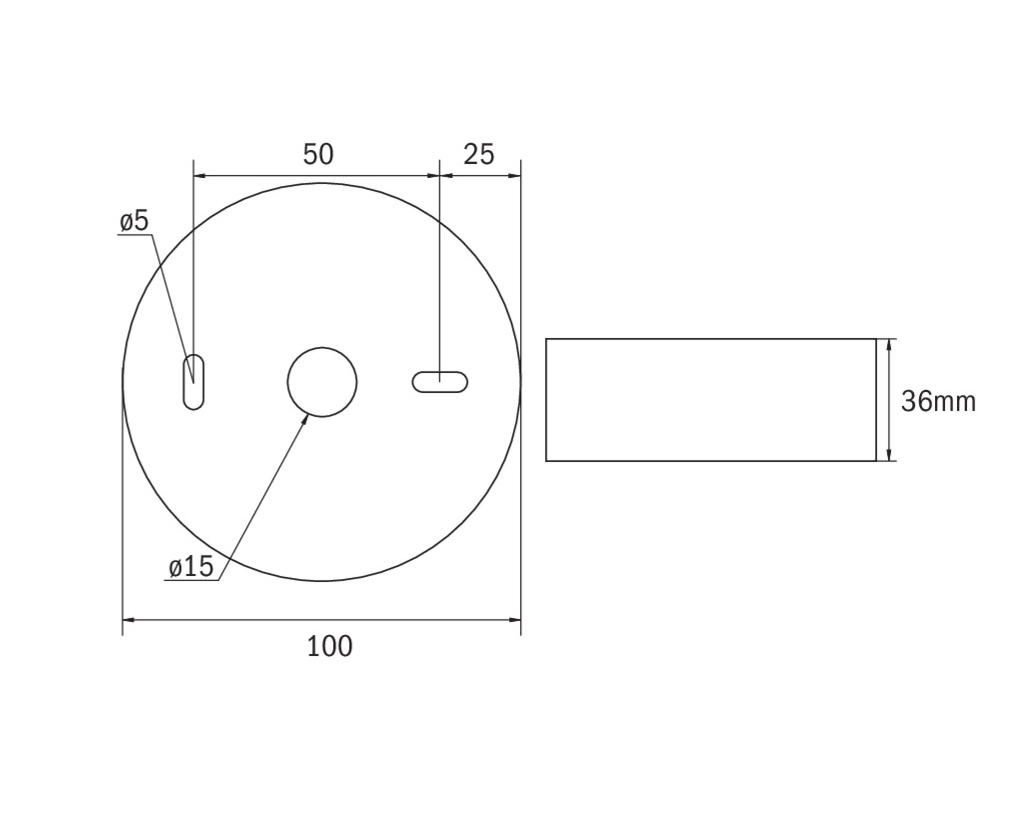

Height
36 mm
Diameter
100 mm
Weight
0.11
Weight incl. packaging
0.15
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
360 lm
Luminous flux emergency
360 lm
Customs tariff number
94056120
EAN
4260766552267
Luminaire type
Safety luminaire
Mounting
Ceiling
Pictograph
No
Illuminant
LED
Housing material
Plastic
Housing color
Black
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE, TÜV Rheinland Type approved, ENEC
Insulation class
2
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
4,6 W
Power DS
4,6 W
Power BS
1,2 W
Ambient temperature DS
-20 °C - 30 °C
Ambient temperature BS
-20 °C - 40 °C
Height
36 mm
Diameter
100 mm
Weight
0.11
Weight incl. packaging
0.15
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
360 lm
Luminous flux emergency
360 lm
Customs tariff number
94056120
EAN
4260766552267

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
